Fluxonium parameter fitting from experimental spectrum data#
In the notebook, we show an efficient method to fit qubit parameters by SuperGrad. The Hamiltonian of a fluxonium is given by
\[H_{\mathrm{f}} = 4E_{\mathrm{C}} n^2 + \frac{1}{2} E_{\mathrm{L}} (\varphi +\varphi_{\mathrm{ext}})^2
-E_{\mathrm{J}}\cos \left( \varphi \right),\]
where \(E_C\), \(E_J\) and \(E_L\) form the parameter set \(\mathbf{x}=(E_C,E_J,E_L)\). We can try to infer these parameters through measuring energy eigenvalues with different \(\varphi_{ext}\) in experiments. For example, we can measured pairs \(\{(\varphi_{\mathrm{ext},i}, e_{01,i})\}\), where \(e_{01,i} = E_1(\varphi_{\mathrm{ext}})-E_0(\varphi_{\mathrm{ext}})\) is the energy difference between lowest 2 eigenvalues. Then, we can minimize the distance between the data and the theoretically computed \(f_{01}(\varphi_{\mathrm{ext}},E_C,E_J,E_L)\) by diagonalizing the above Hamiltonian. A caveat is that we cannot directly control \(\varphi_{\mathrm{ext}}\) in the experiment. Instead, we apply a voltage \(z_i\) which is roughly linear with \(\varphi_{\mathrm{ext}}\).

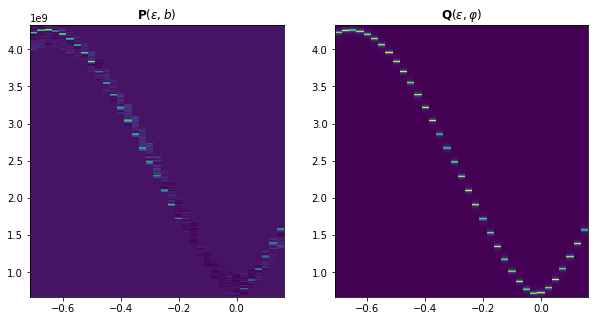

However, it is not always obvious how to extract \(e_{01,i}\) from experiment data when the signal-to-noise ratio is low. Also, we might miss some signals if we are scanning a small part of the 2D plane. For example, below is a fitting of data we will obtain in the end of this notebook. The left side is the data we measured. If we simply find peaks in every column, the columns without a signal will give very wrong \(e_{01,i}\).
](../_images/fitting_result.png)
Thanks to a suggestion from Lei Wang, here we test a distance based on Kullback-Leibler divergence (KL-DIV). KL-DIV is a measure of how different two probability distributions are from each other. Therefore, to use KL-DIV, we need to first convert data like above images to probability distributions \(\mathbf{P}(x, \varepsilon)\) with proper normalization. For example, we can make the elements of a 2D array positive and sum to 1. And we construct the model probability distribution \(\mathbf{Q}(x, \varepsilon)\) by introducing “linewidth” parameter \(\lambda\), x-axis linear transformation parameters \(a,b\), background noise parameter \(c\), \begin{equation} Q(x, \varepsilon) = \frac{1}{Z}([\frac{\lambda}{(\varepsilon-f_{01}(ax+b))^2+\lambda^2}] + c), \end{equation} where \(Z\) is the normalization factor. In our numerical codes, we will use a slightly different but equivalent formula.
The form of the KL-DIV objective function is given by \begin{equation} C(P, Q) = \sum_{x, \varepsilon_i} P\log (\frac{P}{Q}) \end{equation} We can then do gradient descent using SuperGrad.
Load experiment data and initial guess#
We provide a set of loss functions in hamiltonian.utils.loss_function to help the user fitting qubit. Some necessary experiment data are collected by simple API in our functions. The experiment data should contain the definition of grids(xs, ys) and measured complex data exp_Array. In the section, we just load data from pickle. For other use, the simple wrapper wrapper_yaqcs_data for yaqcs data could be useful.
[1]:
import pickle
import jax
import jax.numpy as jnp
from supergrad.utils.optimize import scipy_minimize
from supergrad.utils.loss_function import loss_kl_div
# load experiment data
with open('solve_iep_by_kl_div.pickle', 'rb') as f:
data = pickle.load(f)
Fill initial guess#
The first argument is initial guess, which should be filled manually. One could get the initial guess template by loss_function.init method.
[2]:
loss_kl_div.init(jax.random.PRNGKey(0), *data)
[2]:
{'~': {'bias_phi0': Array(0., dtype=float32),
'bias_phipi': Array(0., dtype=float32),
'bandwidth': Array(0., dtype=float32),
'noise': Array(0., dtype=float32)},
'fluxonium': {'ec': Array(1., dtype=float32),
'ej': Array(1., dtype=float32),
'el': Array(1., dtype=float32)}}
One could set initial guess depends on the understanding of physics.
[3]:
initial_guess = {
'~': {
'bias_phi0': jnp.array(-0.7),
'bias_phipi': jnp.array(0.),
'bandwidth': jnp.array(1.),
'noise': jnp.array(0.2)
},
'fluxonium': {
'ec': jnp.array(1.5),
'ej': jnp.array(2.),
'el': jnp.array(0.5)
}
}
loss_kl_div.apply(initial_guess, *data)
[3]:
Array(14.00229683, dtype=float64)
In practice, we compute the gradient and Hessian matrix of the objective function \(C(f_{01}^b)\) by automatic differential from JAX, and use Newton-CG optimizer to minimize the distance. After the optimization, we compare the experiment results(Left-side) and model probability distribution(Right-side).
[4]:
res = scipy_minimize(loss_kl_div.apply,
initial_guess,
args=data,
hess='jax',
method='newton-cg',
logging=True)
step: 0
parameters:
{ 'fluxonium': {'ec': 1.5, 'ej': 2.0, 'el': 0.5},
'~': {'bandwidth': 1.0, 'bias_phi0': -0.7, 'bias_phipi': 0.0, 'noise': 0.2}}
gradient:
{ 'fluxonium': { 'ec': -0.025793295752176586,
'ej': -0.004528178776546519,
'el': -0.013919042981293421},
'~': { 'bandwidth': -0.2752890878721986,
'bias_phi0': 0.05869861773965142,
'bias_phipi': -0.013765875429010907,
'noise': -0.9733324185364234}}
loss: 14.002297
step: 1
parameters:
{ 'fluxonium': { 'ec': 1.5025010305662907,
'ej': 2.0004390719836107,
'el': 0.5013496511761895},
'~': { 'bandwidth': 1.0266932318362818,
'bias_phi0': -0.7056916742465331,
'bias_phipi': 0.0013347993816106218,
'noise': 0.294378560743473}}
gradient:
{ 'fluxonium': { 'ec': -0.019295180093251305,
'ej': -0.016221379977446326,
'el': -0.025282136053126063},
'~': { 'bandwidth': -0.12774408287263847,
'bias_phi0': 0.023811458917356948,
'bias_phipi': -0.024895932802037862,
'noise': -0.38083222040757514}}
loss: 13.937944
step: 2
parameters:
{ 'fluxonium': { 'ec': 1.5079898265684215,
'ej': 2.005053480615142,
'el': 0.5085415243083952},
'~': { 'bandwidth': 1.0630319033583187,
'bias_phi0': -0.7124651917715756,
'bias_phipi': 0.008416811354172434,
'noise': 0.4027118522055619}}
gradient:
{ 'fluxonium': { 'ec': -0.011723664668844759,
'ej': -0.014970183585624939,
'el': -0.008263637101839184},
'~': { 'bandwidth': -0.04787288502985394,
'bias_phi0': 0.022217773425135333,
'bias_phipi': -0.004636206618533034,
'noise': -0.14318631234517293}}
loss: 13.908229
step: 3
parameters:
{ 'fluxonium': { 'ec': 1.5172413455529226,
'ej': 2.0168669315757386,
'el': 0.5150626248079565},
'~': { 'bandwidth': 1.100809929018974,
'bias_phi0': -0.7299979478203068,
'bias_phipi': 0.012075390370118882,
'noise': 0.5157047536915962}}
gradient:
{ 'fluxonium': { 'ec': -0.00872004754084544,
'ej': -0.014818064310263997,
'el': -0.012343778752235359},
'~': { 'bandwidth': -0.008576010621805932,
'bias_phi0': 0.005902126427732787,
'bias_phipi': -0.00575313619245351,
'noise': -0.05104742262308426}}
loss: 13.896502
step: 4
parameters:
{ 'fluxonium': { 'ec': 1.7550479613931875,
'ej': 2.670190277010084,
'el': 0.5661557933503645},
'~': { 'bandwidth': 0.333285437788576,
'bias_phi0': -1.0190197643041827,
'bias_phipi': 0.0767862725760712,
'noise': 0.825349853684942}}
gradient:
{ 'fluxonium': { 'ec': -0.006819569296773326,
'ej': -0.009062196622352801,
'el': 0.033800422765909784},
'~': { 'bandwidth': -0.14432004350633934,
'bias_phi0': 0.022305391546414477,
'bias_phipi': 0.31136273874269554,
'noise': -0.15746385112690053}}
loss: 13.883665
step: 5
parameters:
{ 'fluxonium': { 'ec': 1.5774334438839017,
'ej': 2.182231982128928,
'el': 0.5279950027154394},
'~': { 'bandwidth': 0.9065390106749411,
'bias_phi0': -0.8031533120481933,
'bias_phipi': 0.028454597361741968,
'noise': 0.5940801522928892}}
gradient:
{ 'fluxonium': { 'ec': -0.007801767488295745,
'ej': -0.014800688500463816,
'el': -0.013879261643937138},
'~': { 'bandwidth': -0.004841025002741289,
'bias_phi0': -0.0044594755736376,
'bias_phipi': 0.014328745096093738,
'noise': -0.0558046140108059}}
loss: 13.890552
step: 6
parameters:
{ 'fluxonium': { 'ec': 1.7006600946478936,
'ej': 2.520771124277427,
'el': 0.5544704647800867},
'~': { 'bandwidth': 0.5088231098810463,
'bias_phi0': -0.9529186594805619,
'bias_phipi': 0.061986487355832426,
'noise': 0.7545320743844559}}
gradient:
{ 'fluxonium': { 'ec': -0.006757990389556816,
'ej': -0.01055139957267063,
'el': 0.00390187101026139},
'~': { 'bandwidth': -0.027523184491978825,
'bias_phi0': 0.0035491209022587844,
'bias_phipi': 0.1350276006583503,
'noise': -0.09955422007531796}}
loss: 13.879515
step: 7
parameters:
{ 'fluxonium': { 'ec': 1.6304743126774028,
'ej': 2.6106942099438712,
'el': 0.5051304558632239},
'~': { 'bandwidth': 0.3388241432663014,
'bias_phi0': -0.8381315195838106,
'bias_phipi': 0.0075087984384037895,
'noise': 1.0697074191401088}}
gradient:
{ 'fluxonium': { 'ec': 0.018736412478446277,
'ej': -0.0028299149451485213,
'el': 0.10395828024094467},
'~': { 'bandwidth': 0.06676125858574708,
'bias_phi0': 0.047706106515065655,
'bias_phipi': -0.016153010579057978,
'noise': -0.05158021877604203}}
loss: 13.846892
step: 8
parameters:
{ 'fluxonium': { 'ec': 1.6273920187840387,
'ej': 2.6129817305918377,
'el': 0.4945268494491639},
'~': { 'bandwidth': 0.3232156212250851,
'bias_phi0': -0.8390871908129633,
'bias_phipi': 0.018092450641693653,
'noise': 1.0815755505692943}}
gradient:
{ 'fluxonium': { 'ec': -0.008863287788018766,
'ej': -0.01608684280442085,
'el': -0.05834389193100784},
'~': { 'bandwidth': 0.0626879538885303,
'bias_phi0': -0.05066278995820675,
'bias_phipi': 0.12520443870705136,
'noise': -0.054902556613871834}}
loss: 13.845506
step: 9
parameters:
{ 'fluxonium': { 'ec': 1.6254537588224218,
'ej': 2.616987677511496,
'el': 0.49410367735651145},
'~': { 'bandwidth': 0.3031357602308864,
'bias_phi0': -0.8317522508289847,
'bias_phipi': 0.015523243637490535,
'noise': 1.0966115606047604}}
gradient:
{ 'fluxonium': { 'ec': 0.0041113289013756105,
'ej': -0.0008747249667099789,
'el': 0.07849434938745513},
'~': { 'bandwidth': 0.06273788519446573,
'bias_phi0': 0.045015400542213896,
'bias_phipi': 0.19120496634476597,
'noise': -0.05813771114646315}}
loss: 13.842913
step: 10
parameters:
{ 'fluxonium': { 'ec': 1.6255135019497053,
'ej': 2.619219229795448,
'el': 0.4969581367462001},
'~': { 'bandwidth': 0.29318609486041014,
'bias_phi0': -0.8268333177203789,
'bias_phipi': 0.002904891265449917,
'noise': 1.1053275770720479}}
gradient:
{ 'fluxonium': { 'ec': 0.02250559042341737,
'ej': -0.011353225936741759,
'el': 0.07466982616032795},
'~': { 'bandwidth': 0.06377581230055511,
'bias_phi0': 0.010595736107378018,
'bias_phipi': -0.1494399783271952,
'noise': -0.059512566170018384}}
loss: 13.841701
step: 11
parameters:
{ 'fluxonium': { 'ec': 1.623705059197279,
'ej': 2.62010773190606,
'el': 0.48998958070223364},
'~': { 'bandwidth': 0.2872761643412571,
'bias_phi0': -0.8283592993038803,
'bias_phipi': 0.010706275066190329,
'noise': 1.1106802812026448}}
gradient:
{ 'fluxonium': { 'ec': -0.0024142022980214242,
'ej': -0.02469279495545268,
'el': -0.08482359111593385},
'~': { 'bandwidth': 0.0643207578414359,
'bias_phi0': -0.08783855806541976,
'bias_phipi': 0.0021862717859417666,
'noise': -0.06082606591920614}}
loss: 13.840466
step: 12
parameters:
{ 'fluxonium': { 'ec': 1.623085842541776,
'ej': 2.6233008964673354,
'el': 0.4927313955536625},
'~': { 'bandwidth': 0.27447964615767156,
'bias_phi0': -0.8213042863031698,
'bias_phipi': 0.0021602734858266817,
'noise': 1.1225730586007077}}
gradient:
{ 'fluxonium': { 'ec': 0.02454892532578671,
'ej': -0.012581745022313712,
'el': 0.07906181105053883},
'~': { 'bandwidth': 0.06121189920311217,
'bias_phi0': 0.008683951067833123,
'bias_phipi': -0.17217116647361097,
'noise': -0.06283112394626425}}
loss: 13.839217
step: 13
parameters:
{ 'fluxonium': { 'ec': 1.6214083149539396,
'ej': 2.624093552788084,
'el': 0.4862788916226996},
'~': { 'bandwidth': 0.2697259117144349,
'bias_phi0': -0.8226814647108882,
'bias_phipi': 0.00992696548311461,
'noise': 1.1272961165730855}}
gradient:
{ 'fluxonium': { 'ec': -0.0017517007402301499,
'ej': -0.024811646846542197,
'el': -0.07986940683379508},
'~': { 'bandwidth': 0.06150050787872148,
'bias_phi0': -0.08633394646084931,
'bias_phipi': 0.017530586430305268,
'noise': -0.06393020415172661}}
loss: 13.838033
step: 14
parameters:
{ 'fluxonium': { 'ec': 1.6208155419870172,
'ej': 2.6270197556117902,
'el': 0.48883977298586795},
'~': { 'bandwidth': 0.25916787268130065,
'bias_phi0': -0.8160111682740719,
'bias_phipi': 0.0014895408171530528,
'noise': 1.1380986990417845}}
gradient:
{ 'fluxonium': { 'ec': 0.027032237658100866,
'ej': -0.01281965055733813,
'el': 0.09077977509656611},
'~': { 'bandwidth': 0.0579469003575488,
'bias_phi0': 0.012574515341762377,
'bias_phipi': -0.18855156853054603,
'noise': -0.06557494181381729}}
loss: 13.837047
step: 15
parameters:
{ 'fluxonium': { 'ec': 1.6195739106585605,
'ej': 2.627589194494332,
'el': 0.48401535694172304},
'~': { 'bandwidth': 0.2560664413465359,
'bias_phi0': -0.8170360340684208,
'bias_phipi': 0.007313727416640522,
'noise': 1.141472977850755}}
gradient:
{ 'fluxonium': { 'ec': 0.005214980026029402,
'ej': -0.023471091144166813,
'el': -0.04499910561234392},
'~': { 'bandwidth': 0.05991109641226794,
'bias_phi0': -0.06981711190780782,
'bias_phipi': -0.025144319629736803,
'noise': -0.06620109458671178}}
loss: 13.835898
step: 16
parameters:
{ 'fluxonium': { 'ec': 1.6174268275360784,
'ej': 2.631634437633004,
'el': 0.4816239934520712},
'~': { 'bandwidth': 0.24149835887640825,
'bias_phi0': -0.8101385910002321,
'bias_phipi': 0.003588831346297525,
'noise': 1.1575069207901614}}
gradient:
{ 'fluxonium': { 'ec': 0.0175040358426466,
'ej': -0.020477787400620385,
'el': 0.019706481792282078},
'~': { 'bandwidth': 0.055672375270912566,
'bias_phi0': -0.036866734752209626,
'bias_phipi': -0.11825092014656795,
'noise': -0.06880389910683267}}
loss: 13.833772
step: 17
parameters:
{ 'fluxonium': { 'ec': 1.6157863885429702,
'ej': 2.6330409496470333,
'el': 0.4767548085137534},
'~': { 'bandwidth': 0.23640059761392157,
'bias_phi0': -0.8093819306641226,
'bias_phipi': 0.008805768804348768,
'noise': 1.1637821870459242}}
gradient:
{ 'fluxonium': { 'ec': -0.003517437502327074,
'ej': -0.026143104879008332,
'el': -0.08568045947554175},
'~': { 'bandwidth': 0.049909472991942525,
'bias_phi0': -0.09235951142076326,
'bias_phipi': 0.08136756828049141,
'noise': -0.07005317554830187}}
loss: 13.833035
step: 18
parameters:
{ 'fluxonium': { 'ec': 1.6156478540504078,
'ej': 2.634380219489231,
'el': 0.4786546448493168},
'~': { 'bandwidth': 0.2329938518468984,
'bias_phi0': -0.8058491570647239,
'bias_phipi': 0.003009389682140386,
'noise': 1.1684169068661179}}
gradient:
{ 'fluxonium': { 'ec': 0.01924248053420584,
'ej': -0.020188969189983298,
'el': 0.030725898344257638},
'~': { 'bandwidth': 0.052868607996206546,
'bias_phi0': -0.031816923170101,
'bias_phipi': -0.11952000449841736,
'noise': -0.070166834025787}}
loss: 13.832311
step: 19
parameters:
{ 'fluxonium': { 'ec': 1.614164110486437,
'ej': 2.6356121260712984,
'el': 0.4741667760554551},
'~': { 'bandwidth': 0.22887856754647207,
'bias_phi0': -0.8052254052227708,
'bias_phipi': 0.007710893482685135,
'noise': 1.1738621817819153}}
gradient:
{ 'fluxonium': { 'ec': -0.0019149499354287267,
'ej': -0.02719380508187507,
'el': -0.08467694880374008},
'~': { 'bandwidth': 0.047618609215089744,
'bias_phi0': -0.09547262047722511,
'bias_phipi': 0.06994439067222107,
'noise': -0.0711790403450489}}
loss: 13.831639
step: 20
parameters:
{ 'fluxonium': { 'ec': 1.6139281908765704,
'ej': 2.6369679099635235,
'el': 0.475759564700371},
'~': { 'bandwidth': 0.22568476191515127,
'bias_phi0': -0.8017279965112643,
'bias_phipi': 0.002432108030957528,
'noise': 1.1785008611867855}}
gradient:
{ 'fluxonium': { 'ec': 0.020786128312529087,
'ej': -0.020281333225617496,
'el': 0.038731781574576206},
'~': { 'bandwidth': 0.05021401816821667,
'bias_phi0': -0.029056513417145866,
'bias_phipi': -0.12324254154919971,
'noise': -0.07127469928278754}}
loss: 13.830978
step: 21
parameters:
{ 'fluxonium': { 'ec': 1.612562387296112,
'ej': 2.63807400715669,
'el': 0.4715812516994715},
'~': { 'bandwidth': 0.2222841622349201,
'bias_phi0': -0.8011842532523439,
'bias_phipi': 0.006752148179455954,
'noise': 1.1833144491313423}}
gradient:
{ 'fluxonium': { 'ec': -0.0004371085823278095,
'ej': -0.02816128782531847,
'el': -0.08350673630691278},
'~': { 'bandwidth': 0.04537806594044249,
'bias_phi0': -0.09818499585048301,
'bias_phipi': 0.06097800266176284,
'noise': -0.07210782887488223}}
loss: 13.830352
step: 22
parameters:
{ 'fluxonium': { 'ec': 1.6122362973528477,
'ej': 2.639456179829586,
'el': 0.4729058379381857},
'~': { 'bandwidth': 0.21926894359370125,
'bias_phi0': -0.7976914164534363,
'bias_phipi': 0.0018549950442821785,
'noise': 1.1879774804535812}}
gradient:
{ 'fluxonium': { 'ec': 0.022284044692194846,
'ej': -0.020577456895943803,
'el': 0.045425984010850615},
'~': { 'bandwidth': 0.04775103272617374,
'bias_phi0': -0.027366647307959124,
'bias_phipi': -0.12836130772722382,
'noise': -0.0721799945261633}}
loss: 13.829735
step: 23
parameters:
{ 'fluxonium': { 'ec': 1.6109622579434821,
'ej': 2.640466566907176,
'el': 0.468981332056436},
'~': { 'bandwidth': 0.21641173681621334,
'bias_phi0': -0.7972013191095191,
'bias_phipi': 0.00588116637725472,
'noise': 1.1922842659709376}}
gradient:
{ 'fluxonium': { 'ec': 0.0009824842197960204,
'ej': -0.029115302108627325,
'el': -0.08231102776760334},
'~': { 'bandwidth': 0.04326512134726092,
'bias_phi0': -0.10074852944209672,
'bias_phipi': 0.05359070375726127,
'noise': -0.0728742450861995}}
loss: 13.829142
step: 24
parameters:
{ 'fluxonium': { 'ec': 1.610548333763449,
'ej': 2.6418845483894446,
'el': 0.4700635124053004},
'~': { 'bandwidth': 0.21354786102296602,
'bias_phi0': -0.7936867352990928,
'bias_phipi': 0.0012775810737862252,
'noise': 1.1969846848719643}}
gradient:
{ 'fluxonium': { 'ec': 0.023796279468653925,
'ej': -0.021026397393252058,
'el': 0.05142398791370299},
'~': { 'bandwidth': 0.04551274856795934,
'bias_phi0': -0.026326006927043427,
'bias_phipi': -0.13438095814671264,
'noise': -0.07292105504352471}}
loss: 13.828556
step: 25
parameters:
{ 'fluxonium': { 'ec': 1.6093456635663583,
'ej': 2.6428217105801353,
'el': 0.46634705617444133},
'~': { 'bandwidth': 0.2111111343578286,
'bias_phi0': -0.7932322569575799,
'bias_phipi': 0.005072147978219012,
'noise': 1.2008768800584715}}
gradient:
{ 'fluxonium': { 'ec': 0.0023718660945267617,
'ej': -0.03011163025477165,
'el': -0.08126804810955761},
'~': { 'bandwidth': 0.041320647304713805,
'bias_phi0': -0.10337580733446687,
'bias_phipi': 0.04745898199737343,
'noise': -0.07350723930351644}}
loss: 13.827986
step: 26
parameters:
{ 'fluxonium': { 'ec': 1.608844319642279,
'ej': 2.6442833515266337,
'el': 0.46720689042369046},
'~': { 'bandwidth': 0.20837945886316026,
'bias_phi0': -0.789674776195834,
'bias_phipi': 0.0006989994269674515,
'noise': 1.2056167892751901}}
gradient:
{ 'fluxonium': { 'ec': 0.025355481182149982,
'ej': -0.021622271002091444,
'el': 0.056972522120068536},
'~': { 'bandwidth': 0.043525370953644546,
'bias_phi0': -0.025787488765868782,
'bias_phipi': -0.1410343486143969,
'noise': -0.07352842862884859}}
loss: 13.827421
step: 27
parameters:
{ 'fluxonium': { 'ec': 1.6076964855461164,
'ej': 2.64516527604903,
'el': 0.46366133464432835},
'~': { 'bandwidth': 0.20627162357970358,
'bias_phi0': -0.7892415135388599,
'bias_phipi': 0.004307809279439211,
'noise': 1.2091654114149735}}
gradient:
{ 'fluxonium': { 'ec': 0.0037566434854031175,
'ej': -0.031193024230943465,
'el': -0.08047361085469515},
'~': { 'bandwidth': 0.039575238971458405,
'bias_phi0': -0.10620102301125972,
'bias_phipi': 0.042436417356032374,
'noise': -0.07403074797104284}}
loss: 13.826867
step: 28
parameters:
{ 'fluxonium': { 'ec': 1.6071072846162653,
'ej': 2.6466766689337233,
'el': 0.46431542112932545},
'~': { 'bandwidth': 0.20365914610484798,
'bias_phi0': -0.7856256704462884,
'bias_phipi': 0.0001180202373432665,
'noise': 1.2139361800114996}}
gradient:
{ 'fluxonium': { 'ec': 0.026985604762165237,
'ej': -0.022377969048253024,
'el': 0.06217799333339524},
'~': { 'bandwidth': 0.041811679068748005,
'bias_phi0': -0.025709430528941618,
'bias_phipi': -0.14816960568961723,
'noise': -0.07402763214662178}}
loss: 13.826315
step: 29
parameters:
{ 'fluxonium': { 'ec': 1.606000703262737,
'ej': 2.6475181567251025,
'el': 0.46091099985780337},
'~': { 'bandwidth': 0.2018106648717041,
'bias_phi0': -0.7852014820962155,
'bias_phipi': 0.003575556603954679,
'noise': 1.2171963927247766}}
gradient:
{ 'fluxonium': { 'ec': 0.00516421675553156,
'ej': -0.032395363326840135,
'el': -0.07996294198685241},
'~': { 'bandwidth': 0.03805610092981812,
'bias_phi0': -0.10930646069399676,
'bias_phipi': 0.03844359109394822,
'noise': -0.07446535355942793}}
loss: 13.825771
step: 30
parameters:
{ 'fluxonium': { 'ec': 1.6053229757626784,
'ej': 2.6490837438048422,
'el': 0.4613739335413833},
'~': { 'bandwidth': 0.19930832333498408,
'bias_phi0': -0.7815174903814869,
'bias_phipi': -0.0004666437184777908,
'noise': 1.221980062447313}}
gradient:
{ 'fluxonium': { 'ec': 0.028708184060035516,
'ej': -0.02331492291646318,
'el': 0.06709283737205296},
'~': { 'bandwidth': 0.040392723149462774,
'bias_phi0': -0.02609026438365386,
'bias_phipi': -0.15570262520653128,
'noise': -0.07444103210288913}}
loss: 13.825227
step: 31
parameters:
{ 'fluxonium': { 'ec': 1.6042463837106125,
'ej': 2.6498972022494267,
'el': 0.45808689126275903},
'~': { 'bandwidth': 0.19766554487205168,
'bias_phi0': -0.7810920613396727,
'bias_phipi': 0.002866026225296608,
'noise': 1.2249948525848169}}
gradient:
{ 'fluxonium': { 'ec': 0.0066223942570764124,
'ej': -0.03375248493836144,
'el': -0.07974496692966104},
'~': { 'bandwidth': 0.03678878033739307,
'bias_phi0': -0.11274946625616002,
'bias_phipi': 0.03542803734686971,
'noise': -0.07482974703042736}}
loss: 13.824687
step: 32
parameters:
{ 'fluxonium': { 'ec': 1.6034797142493926,
'ej': 2.651519965166233,
'el': 0.45837247835722705},
'~': { 'bandwidth': 0.1952663827814402,
'bias_phi0': -0.7773355240446774,
'bias_phipi': -0.0010560750224777597,
'noise': 1.2297661148913464}}
gradient:
{ 'fluxonium': { 'ec': 0.030544147659059627,
'ej': -0.02445840789843101,
'el': 0.07175171448939058},
'~': { 'bandwidth': 0.03928808025906843,
'bias_phi0': -0.026939622885697234,
'bias_phipi': -0.1635941835792853,
'noise': -0.07478916433647972}}
loss: 13.824147
step: 33
parameters:
{ 'fluxonium': { 'ec': 1.6024236857514595,
'ej': 2.65231597805685,
'el': 0.4551837354304709},
'~': { 'bandwidth': 0.19378720193199356,
'bias_phi0': -0.7769002046682971,
'bias_phipi': 0.0021723189598139973,
'noise': 1.2325692031892224}}
gradient:
{ 'fluxonium': { 'ec': 0.008157410983029453,
'ej': -0.03529901547576457,
'el': -0.0798276507515527},
'~': { 'bandwidth': 0.03579725217236468,
'bias_phi0': -0.11658032546381973,
'bias_phipi': 0.033346427362851164,
'noise': -0.07514174016989818}}
loss: 13.823609
step: 34
parameters:
{ 'fluxonium': { 'ec': 1.601568342924819,
'ej': 2.653997630577218,
'el': 0.45530596917059535},
'~': { 'bandwidth': 0.1914850143597379,
'bias_phi0': -0.7730716883245958,
'bias_phipi': -0.0016509677462502948,
'noise': 1.2372977485971728}}
gradient:
{ 'fluxonium': { 'ec': 0.03251370264994113,
'ej': -0.025834980378142882,
'el': 0.07618696002126793},
'~': { 'bandwidth': 0.038515383213636005,
'bias_phi0': -0.02826431270920482,
'bias_phipi': -0.171837735973492,
'noise': -0.0750915305560543}}
loss: 13.823069
step: 35
parameters:
{ 'fluxonium': { 'ec': 1.600525609530549,
'ej': 2.6547848691016487,
'el': 0.45220199572806485},
'~': { 'bandwidth': 0.1901366767684271,
'bias_phi0': -0.7726197159390971,
'bias_phipi': 0.001487471245978162,
'noise': 1.2399142154405474}}
gradient:
{ 'fluxonium': { 'ec': 0.00980744006835823,
'ej': -0.037064110456172625,
'el': -0.08012858937842547},
'~': { 'bandwidth': 0.0351092871333016,
'bias_phi0': -0.12079063228598297,
'bias_phipi': 0.03202959533401084,
'noise': -0.07541844734384798}}
loss: 13.822529
step: 36
parameters:
{ 'fluxonium': { 'ec': 1.5995809638258975,
'ej': 2.656528172146943,
'el': 0.4521716421571681},
'~': { 'bandwidth': 0.1879218591366112,
'bias_phi0': -0.7687211527982002,
'bias_phipi': -0.002252412221454787,
'noise': 1.2445737275010733}}
gradient:
{ 'fluxonium': { 'ec': 0.034636723991562327,
'ej': -0.027477028116945534,
'el': 0.08040299881169634},
'~': { 'bandwidth': 0.03808934677105337,
'bias_phi0': -0.03009123254683166,
'bias_phipi': -0.1805190632785029,
'noise': -0.07536724372026479}}
loss: 13.821985
step: 37
parameters:
{ 'fluxonium': { 'ec': 1.5985466879513466,
'ej': 2.657313236359513,
'el': 0.44914505654239406},
'~': { 'bandwidth': 0.18667937156749756,
'bias_phi0': -0.7682479777751021,
'bias_phipi': 0.0008054042260700945,
'noise': 1.2470206287806644}}
gradient:
{ 'fluxonium': { 'ec': 0.011618543403251184,
'ej': -0.039064909308790134,
'el': -0.0804398855936835},
'~': { 'bandwidth': 0.034752366338126,
'bias_phi0': -0.1252788103942436,
'bias_phipi': 0.03128969928651464,
'noise': -0.07567674043202915}}
loss: 13.821440
step: 38
parameters:
{ 'fluxonium': { 'ec': 1.5975099163222026,
'ej': 2.6591237100572775,
'el': 0.44896667906383425},
'~': { 'bandwidth': 0.1845372620165755,
'bias_phi0': -0.7642801150700815,
'bias_phipi': -0.0028613987700908125,
'noise': 1.2515942967578257}}
gradient:
{ 'fluxonium': { 'ec': 0.03692709927027619,
'ej': -0.029428542837073732,
'el': 0.08431965922452646},
'~': { 'bandwidth': 0.03802339473090827,
'bias_phi0': -0.0325048870116279,
'bias_phipi': -0.18979100209487698,
'noise': -0.07563509394441831}}
loss: 13.820888
step: 39
parameters:
{ 'fluxonium': { 'ec': 1.5964767173766525,
'ej': 2.6599150417269413,
'el': 0.4460019815744923},
'~': { 'bandwidth': 0.18337619832846835,
'bias_phi0': -0.7637808207562247,
'bias_phipi': 0.00013658052045378627,
'noise': 1.2538932728306897}}
gradient:
{ 'fluxonium': { 'ec': 0.013518895671314875,
'ej': -0.041362697868257386,
'el': -0.08126061235510769},
'~': { 'bandwidth': 0.03470537523657496,
'bias_phi0': -0.1303231638121316,
'bias_phipi': 0.03207712246466013,
'noise': -0.0759358141858681}}
loss: 13.820336
step: 40
parameters:
{ 'fluxonium': { 'ec': 1.5953592802896714,
'ej': 2.6617834794473314,
'el': 0.4457069810991348},
'~': { 'bandwidth': 0.18131141661935882,
'bias_phi0': -0.7597681688712423,
'bias_phipi': -0.003473809606765458,
'noise': 1.2583269809149522}}
gradient:
{ 'fluxonium': { 'ec': 0.0393962889000287,
'ej': -0.03167884643199009,
'el': 0.08818170357415928},
'~': { 'bandwidth': 0.03832685889281913,
'bias_phi0': -0.03529859779473005,
'bias_phipi': -0.19945229358025401,
'noise': -0.07591083013590572}}
loss: 13.819777
step: 41
parameters:
{ 'fluxonium': { 'ec': 1.594328463733235,
'ej': 2.6625829460848514,
'el': 0.4428111990530077},
'~': { 'bandwidth': 0.1802189400227491,
'bias_phi0': -0.7592434114277924,
'bias_phipi': -0.0005453495856013405,
'noise': 1.2604813946045104}}
gradient:
{ 'fluxonium': { 'ec': 0.01569806967899104,
'ej': -0.043940290037881344,
'el': -0.08164387000181575},
'~': { 'bandwidth': 0.03506422163785278,
'bias_phi0': -0.1354474419498003,
'bias_phipi': 0.03218871698108998,
'noise': -0.07620711012434585}}
loss: 13.819215
step: 42
parameters:
{ 'fluxonium': { 'ec': 1.5931155150312402,
'ej': 2.6645295462947067,
'el': 0.4423770471068562},
'~': { 'bandwidth': 0.17819578218245893,
'bias_phi0': -0.7551696162133326,
'bias_phipi': -0.004092428022448984,
'noise': 1.2648037450772647}}
gradient:
{ 'fluxonium': { 'ec': 0.04202966127381349,
'ej': -0.034340290133159666,
'el': 0.09139339587526106},
'~': { 'bandwidth': 0.0390135437408344,
'bias_phi0': -0.0389346962271018,
'bias_phipi': -0.20995097739993065,
'noise': -0.07621374556134117}}
loss: 13.818639
step: 43
parameters:
{ 'fluxonium': { 'ec': 1.5920721120774968,
'ej': 2.6653518957700384,
'el': 0.4395134341405599},
'~': { 'bandwidth': 0.17714472833038575,
'bias_phi0': -0.7546107410224433,
'bias_phipi': -0.0011839984683489095,
'noise': 1.2668491675426803}}
gradient:
{ 'fluxonium': { 'ec': 0.01773718479401086,
'ej': -0.04695735242377821,
'el': -0.08397778634215351},
'~': { 'bandwidth': 0.035652595446524916,
'bias_phi0': -0.14186892544887508,
'bias_phipi': 0.036687547045836336,
'noise': -0.0765165759702795}}
loss: 13.818065
step: 44
parameters:
{ 'fluxonium': { 'ec': 1.5908175084321714,
'ej': 2.6673239274449743,
'el': 0.43904671134543377},
'~': { 'bandwidth': 0.17521591458685912,
'bias_phi0': -0.7505657835029524,
'bias_phipi': -0.004705534178213861,
'noise': 1.2709183484683604}}
gradient:
{ 'fluxonium': { 'ec': 0.04486866618885266,
'ej': -0.03721051783465795,
'el': 0.09547196177265853},
'~': { 'bandwidth': 0.04005877945170125,
'bias_phi0': -0.04216600508436211,
'bias_phipi': -0.2204950608134462,
'noise': -0.07655037309906759}}
loss: 13.817488
step: 45
parameters:
{ 'fluxonium': { 'ec': 1.5897901875387237,
'ej': 2.6681488494140835,
'el': 0.4362887994221594},
'~': { 'bandwidth': 0.1742226635180148,
'bias_phi0': -0.7499935152661538,
'bias_phipi': -0.001911833540623728,
'noise': 1.2728096290496693}}
gradient:
{ 'fluxonium': { 'ec': 0.02067377105754048,
'ej': -0.05009514535161368,
'el': -0.08229392212412155},
'~': { 'bandwidth': 0.03693899785386244,
'bias_phi0': -0.14646033247974022,
'bias_phipi': 0.032628692591177344,
'noise': -0.07685108917232464}}
loss: 13.816900
step: 46
parameters:
{ 'fluxonium': { 'ec': 1.5883796256332754,
'ej': 2.6702751079431155,
'el': 0.435577314492401},
'~': { 'bandwidth': 0.17223103005889426,
'bias_phi0': -0.7458114459266142,
'bias_phipi': -0.005324754980057196,
'noise': 1.276899924897924}}
gradient:
{ 'fluxonium': { 'ec': 0.04771901458848876,
'ej': -0.0409140866348379,
'el': 0.09601948749041009},
'~': { 'bandwidth': 0.041555229888328826,
'bias_phi0': -0.04832232195387787,
'bias_phipi': -0.23242675850610428,
'noise': -0.07695473724712615}}
loss: 13.816273
step: 47
parameters:
{ 'fluxonium': { 'ec': 1.5873225084758846,
'ej': 2.6711451266595714,
'el': 0.43281979656258135},
'~': { 'bandwidth': 0.1712430597782875,
'bias_phi0': -0.7451888612362761,
'bias_phipi': -0.0024866329335026987,
'noise': 1.2787257392566982}}
gradient:
{ 'fluxonium': { 'ec': 0.022627992380218058,
'ej': -0.05388716082058727,
'el': -0.0864348021728748},
'~': { 'bandwidth': 0.0380578302607201,
'bias_phi0': -0.15396926316951948,
'bias_phipi': 0.045731117115726076,
'noise': -0.07727592513674199}}
loss: 13.815672
step: 48
parameters:
{ 'fluxonium': { 'ec': 1.5859660856637752,
'ej': 2.6732038298755776,
'el': 0.43223797126976565},
'~': { 'bandwidth': 0.16941877147242984,
'bias_phi0': -0.741201730472395,
'bias_phipi': -0.005926735277474108,
'noise': 1.282371966344735}}
gradient:
{ 'fluxonium': { 'ec': 0.050867937074160145,
'ej': -0.044449389529242725,
'el': 0.10029405382551496},
'~': { 'bandwidth': 0.04331894947815497,
'bias_phi0': -0.05175923662015844,
'bias_phipi': -0.24401696832509193,
'noise': -0.07740056789377572}}
loss: 13.815072
step: 49
parameters:
{ 'fluxonium': { 'ec': 1.5849401189210652,
'ej': 2.6740683406834775,
'el': 0.42961656733178655},
'~': { 'bandwidth': 0.16848257633767263,
'bias_phi0': -0.7405838882920656,
'bias_phipi': -0.0032386661333801683,
'noise': 1.2840413708541694}}
gradient:
{ 'fluxonium': { 'ec': 0.026207034105707384,
'ej': -0.0576556193031803,
'el': -0.08303504025342606},
'~': { 'bandwidth': 0.04025832687742349,
'bias_phi0': -0.15801022719147206,
'bias_phipi': 0.037208523973408944,
'noise': -0.07771935641325273}}
loss: 13.814453
step: 50
parameters:
{ 'fluxonium': { 'ec': 1.5833815734506087,
'ej': 2.6763478597118087,
'el': 0.4287150947778538},
'~': { 'bandwidth': 0.16651607386799305,
'bias_phi0': -0.7364053283021514,
'bias_phipi': -0.006526334774408782,
'noise': 1.2878022963232005}}
gradient:
{ 'fluxonium': { 'ec': 0.05385289028708967,
'ej': -0.04916314613951507,
'el': 0.09855216500792185},
'~': { 'bandwidth': 0.045607964992906466,
'bias_phi0': -0.05973938124295641,
'bias_phipi': -0.25646005782592013,
'noise': -0.07794839670771}}
loss: 13.813771
step: 51
parameters:
{ 'fluxonium': { 'ec': 1.5823090745153994,
'ej': 2.6772814169150245,
'el': 0.42606054637508617},
'~': { 'bandwidth': 0.16555323341356756,
'bias_phi0': -0.7357238862295761,
'bias_phipi': -0.003752641146755045,
'noise': 1.2894481621771656}}
gradient:
{ 'fluxonium': { 'ec': 0.02793806453318208,
'ej': -0.06246430905311108,
'el': -0.09064565485144745},
'~': { 'bandwidth': 0.04190567651317219,
'bias_phi0': -0.16747340179546336,
'bias_phipi': 0.05832957979078182,
'noise': -0.07830307571151521}}
loss: 13.813140
step: 52
parameters:
{ 'fluxonium': { 'ec': 1.580901478361958,
'ej': 2.6793987101790617,
'el': 0.4254353965686064},
'~': { 'bandwidth': 0.16381356708339923,
'bias_phi0': -0.7318911922531626,
'bias_phipi': -0.007101283546359541,
'noise': 1.2926502754376588}}
gradient:
{ 'fluxonium': { 'ec': 0.05716467428550211,
'ej': -0.05339441169553748,
'el': 0.10259330087019156},
'~': { 'bandwidth': 0.04802131439587433,
'bias_phi0': -0.06328041350640362,
'bias_phipi': -0.26890604666264406,
'noise': -0.07853451240903078}}
loss: 13.812515
step: 53
parameters:
{ 'fluxonium': { 'ec': 1.5798776551076985,
'ej': 2.6803149528881147,
'el': 0.4229481212641344},
'~': { 'bandwidth': 0.16290288561725597,
'bias_phi0': -0.7312358848573421,
'bias_phipi': -0.004508724327824504,
'noise': 1.2941397380723512}}
gradient:
{ 'fluxonium': { 'ec': 0.03203292014511641,
'ej': -0.06682497938583667,
'el': -0.08537957552838034},
'~': { 'bandwidth': 0.04496251032736669,
'bias_phi0': -0.170470496749406,
'bias_phipi': 0.04498210684757176,
'noise': -0.07888241425286986}}
loss: 13.811864
step: 54
parameters:
{ 'fluxonium': { 'ec': 1.5782366489715807,
'ej': 2.6827093928813097,
'el': 0.42195866290162404},
'~': { 'bandwidth': 0.16096237174653308,
'bias_phi0': -0.7271781046263699,
'bias_phipi': -0.0076706778323738945,
'noise': 1.297521379797633}}
gradient:
{ 'fluxonium': { 'ec': 0.06023155494199607,
'ej': -0.05898240590727437,
'el': 0.0995829856238907},
'~': { 'bandwidth': 0.051008068088086105,
'bias_phi0': -0.07187628143385583,
'bias_phipi': -0.2817780372090396,
'noise': -0.07924969275330551}}
loss: 13.811134
step: 55
parameters:
{ 'fluxonium': { 'ec': 1.577153502271131,
'ej': 2.6837158393777862,
'el': 0.41940861594534307},
'~': { 'bandwidth': 0.16000056078473168,
'bias_phi0': -0.726456029056096,
'bias_phipi': -0.004964656893459559,
'noise': 1.2990191249675507}}
gradient:
{ 'fluxonium': { 'ec': 0.033426924534955965,
'ej': -0.0727425596328855,
'el': -0.09734420070857526},
'~': { 'bandwidth': 0.047101109015791,
'bias_phi0': -0.18207931868133526,
'bias_phipi': 0.07323196693563833,
'noise': -0.0796484614424163}}
loss: 13.810471
step: 56
parameters:
{ 'fluxonium': { 'ec': 1.5757383730093588,
'ej': 2.685871327874149,
'el': 0.41879497867304966},
'~': { 'bandwidth': 0.15832535073919404,
'bias_phi0': -0.7228468769428503,
'bias_phipi': -0.008205198465075038,
'noise': 1.3018110094767272}}
gradient:
{ 'fluxonium': { 'ec': 0.06352123292195788,
'ej': -0.06394816525932098,
'el': 0.10257630007240465},
'~': { 'bandwidth': 0.05398605083512886,
'bias_phi0': -0.07562507509629918,
'bias_phipi': -0.2947171792689092,
'noise': -0.07999179516840794}}
loss: 13.809820
step: 57
parameters:
{ 'fluxonium': { 'ec': 1.574720108010022,
'ej': 2.6868478459215455,
'el': 0.4164391967821699},
'~': { 'bandwidth': 0.15741909828273162,
'bias_phi0': -0.7221700272077444,
'bias_phipi': -0.005702300408146805,
'noise': 1.3031568755715057}}
gradient:
{ 'fluxonium': { 'ec': 0.037841989792014724,
'ej': -0.07762872097049467,
'el': -0.09026806703269526},
'~': { 'bandwidth': 0.05089549643911833,
'bias_phi0': -0.18355913198798735,
'bias_phipi': 0.055634799510413876,
'noise': -0.08037653936415325}}
loss: 13.809138
step: 58
parameters:
{ 'fluxonium': { 'ec': 1.573062519138057,
'ej': 2.68931622203673,
'el': 0.41545729291704564},
'~': { 'bandwidth': 0.15551080575356205,
'bias_phi0': -0.718333689999263,
'bias_phipi': -0.008741405677262205,
'noise': 1.3061558362417514}}
gradient:
{ 'fluxonium': { 'ec': 0.06663779276003447,
'ej': -0.07022896150621316,
'el': 0.09950546809472285},
'~': { 'bandwidth': 0.05753643516854632,
'bias_phi0': -0.0835272060935674,
'bias_phipi': -0.3088137311711901,
'noise': -0.08088107890055476}}
loss: 13.808374
step: 59
parameters:
{ 'fluxonium': { 'ec': 1.5719816205098585,
'ej': 2.690394622676648,
'el': 0.41302467630283113},
'~': { 'bandwidth': 0.1545405795994278,
'bias_phi0': -0.7176019846617654,
'bias_phipi': -0.006108980194099986,
'noise': 1.3075250733742807}}
gradient:
{ 'fluxonium': { 'ec': 0.038889339365316467,
'ej': -0.08455598738705433,
'el': -0.10602554060183993},
'~': { 'bandwidth': 0.05349370833498521,
'bias_phi0': -0.19650348034283174,
'bias_phipi': 0.08925636905263637,
'noise': -0.08132658656919708}}
loss: 13.807680
step: 60
parameters:
{ 'fluxonium': { 'ec': 1.5705856130037614,
'ej': 2.6925830962755724,
'el': 0.4124513772775003},
'~': { 'bandwidth': 0.15290702327894246,
'bias_phi0': -0.7142512839296284,
'bias_phipi': -0.009227879429007272,
'noise': 1.3099747850216046}}
gradient:
{ 'fluxonium': { 'ec': 0.06973413959200173,
'ej': -0.07597184189795644,
'el': 0.1005005681377921},
'~': { 'bandwidth': 0.0610112852204828,
'bias_phi0': -0.08768102535172129,
'bias_phipi': -0.32197883439797187,
'noise': -0.08178430231898678}}
loss: 13.807005
step: 61
parameters:
{ 'fluxonium': { 'ec': 1.5695826684361573,
'ej': 2.693619612756583,
'el': 0.41023435461282864},
'~': { 'bandwidth': 0.15199667050367732,
'bias_phi0': -0.7135788509090002,
'bias_phipi': -0.006812095769400305,
'noise': 1.311200283154502}}
gradient:
{ 'fluxonium': { 'ec': 0.04343805639097008,
'ej': -0.08989857606150681,
'el': -0.09719710532301445},
'~': { 'bandwidth': 0.05790317969006303,
'bias_phi0': -0.19598392281768567,
'bias_phipi': 0.06815472815807255,
'noise': -0.08220663827397964}}
loss: 13.806296
step: 62
parameters:
{ 'fluxonium': { 'ec': 1.5679513329211483,
'ej': 2.696139823279714,
'el': 0.40931565093460376},
'~': { 'bandwidth': 0.1501164964770059,
'bias_phi0': -0.7100239891488317,
'bias_phipi': -0.00972790831728624,
'noise': 1.3138606542327929}}
gradient:
{ 'fluxonium': { 'ec': 0.07281917832057215,
'ej': -0.08283546354983788,
'el': 0.0978009779296484},
'~': { 'bandwidth': 0.06502079178838216,
'bias_phi0': -0.09413072741929002,
'bias_phipi': -0.3379551836159906,
'noise': -0.08284516072289541}}
loss: 13.805508
step: 63
parameters:
{ 'fluxonium': { 'ec': 1.5668911702126038,
'ej': 2.697280387582931,
'el': 0.4070249091268352},
'~': { 'bandwidth': 0.14913905913962403,
'bias_phi0': -0.7093183533842374,
'bias_phipi': -0.007176924354173152,
'noise': 1.3151125539781012}}
gradient:
{ 'fluxonium': { 'ec': 0.044148620418299506,
'ej': -0.09765929025502702,
'el': -0.11555059398294878},
'~': { 'bandwidth': 0.06093028327292158,
'bias_phi0': -0.2089844446023822,
'bias_phipi': 0.10572036466329325,
'noise': -0.08333138513442456}}
loss: 13.804788
step: 64
parameters:
{ 'fluxonium': { 'ec': 1.565528953961758,
'ej': 2.699505396357476,
'el': 0.40650367106748103},
'~': { 'bandwidth': 0.1475264571628672,
'bias_phi0': -0.7062458315834828,
'bias_phipi': -0.01016366981230657,
'noise': 1.3172910705911325}}
gradient:
{ 'fluxonium': { 'ec': 0.07557805461135128,
'ej': -0.08939810640863803,
'el': 0.09582145694988825},
'~': { 'bandwidth': 0.06895386731208032,
'bias_phi0': -0.09888651705474727,
'bias_phipi': -0.35133394985083,
'noise': -0.08390755500823488}}
loss: 13.804092
step: 65
parameters:
{ 'fluxonium': { 'ec': 1.5645566165380531,
'ej': 2.7005927588673826,
'el': 0.4044447361865116},
'~': { 'bandwidth': 0.14661343854721254,
'bias_phi0': -0.705608671937736,
'bias_phipi': -0.007836843335257694,
'noise': 1.3184088232348838}}
gradient:
{ 'fluxonium': { 'ec': 0.0486828287407666,
'ej': -0.10339923831095264,
'el': -0.10495883998932506},
'~': { 'bandwidth': 0.06585385940140352,
'bias_phi0': -0.2059419161480408,
'bias_phipi': 0.0814669882725143,
'noise': -0.08436022229959647}}
loss: 13.803363
step: 66
parameters:
{ 'fluxonium': { 'ec': 1.5629732459074692,
'ej': 2.7031605699124324,
'el': 0.4036123256761123},
'~': { 'bandwidth': 0.1447490873845962,
'bias_phi0': -0.7023687847220891,
'bias_phipi': -0.010622841772132753,
'noise': 1.3207928319110782}}
gradient:
{ 'fluxonium': { 'ec': 0.07850878441245585,
'ej': -0.09679494212159631,
'el': 0.09333844677625261},
'~': { 'bandwidth': 0.07335645254628546,
'bias_phi0': -0.1034555168433341,
'bias_phipi': -0.36918235698526825,
'noise': -0.08513272378364983}}
loss: 13.802561
step: 67
parameters:
{ 'fluxonium': { 'ec': 1.5619535697707705,
'ej': 2.7043484744867707,
'el': 0.4014935596903489},
'~': { 'bandwidth': 0.14377119793375154,
'bias_phi0': -0.7017231884228213,
'bias_phipi': -0.008163526187560787,
'noise': 1.321935112832208}}
gradient:
{ 'fluxonium': { 'ec': 0.049029776042844364,
'ej': -0.11185028768269373,
'el': -0.12495407394676442},
'~': { 'bandwidth': 0.06926397073549181,
'bias_phi0': -0.21779173376744942,
'bias_phipi': 0.12217931953419849,
'noise': -0.08564730692528773}}
loss: 13.801822
step: 68
parameters:
{ 'fluxonium': { 'ec': 1.5606341776812884,
'ej': 2.7066165402990467,
'el': 0.40103025198609366},
'~': { 'bandwidth': 0.1421634511963564,
'bias_phi0': -0.6989481082206644,
'bias_phipi': -0.01100843462118126,
'noise': 1.3239023764165792}}
gradient:
{ 'fluxonium': { 'ec': 0.0808104061869104,
'ej': -0.10422351090113688,
'el': 0.08734670979734036},
'~': { 'bandwidth': 0.07771561676485847,
'bias_phi0': -0.10897812590353695,
'bias_phipi': -0.3830704213249623,
'noise': -0.08634710995320091}}
loss: 13.801114
step: 69
parameters:
{ 'fluxonium': { 'ec': 1.5597093043513213,
'ej': 2.707740227241934,
'el': 0.3991548695155375},
'~': { 'bandwidth': 0.1412547950170453,
'bias_phi0': -0.6983765029833361,
'bias_phipi': -0.008776378894795385,
'noise': 1.3249199758210881}}
gradient:
{ 'fluxonium': { 'ec': 0.05343837833041676,
'ej': -0.1179422056383667,
'el': -0.11263374728956183},
'~': { 'bandwidth': 0.07459753781393154,
'bias_phi0': -0.21171119124267884,
'bias_phipi': 0.09463899540833416,
'noise': -0.0868172145906276}}
loss: 13.800372
step: 70
parameters:
{ 'fluxonium': { 'ec': 1.5581839675227378,
'ej': 2.7103615050662127,
'el': 0.39841899533219216},
'~': { 'bandwidth': 0.13939232877860666,
'bias_phi0': -0.695477222277279,
'bias_phipi': -0.011422536039813937,
'noise': 1.3270872289630509}}
gradient:
{ 'fluxonium': { 'ec': 0.08347547824485238,
'ej': -0.11210172801322721,
'el': 0.08491275582389562},
'~': { 'bandwidth': 0.08243230818751213,
'bias_phi0': -0.11114518077906632,
'bias_phipi': -0.40232707297427706,
'noise': -0.08772580432324706}}
loss: 13.799564
step: 71
parameters:
{ 'fluxonium': { 'ec': 1.5572224602363816,
'ej': 2.711579717416752,
'el': 0.3965015058440505},
'~': { 'bandwidth': 0.1384235073357153,
'bias_phi0': -0.6949219444132668,
'bias_phipi': -0.009066180162305024,
'noise': 1.3281265967800349}}
gradient:
{ 'fluxonium': { 'ec': 0.053379523192915085,
'ej': -0.12697639371233022,
'el': -0.13374837886428798},
'~': { 'bandwidth': 0.07829084135419015,
'bias_phi0': -0.22143350886780008,
'bias_phipi': 0.13805596041493104,
'noise': -0.08825323252839651}}
loss: 13.798816
step: 72
parameters:
{ 'fluxonium': { 'ec': 1.5559511724546369,
'ej': 2.7138993503421043,
'el': 0.3961024185886822},
'~': { 'bandwidth': 0.1368089101092683,
'bias_phi0': -0.6924666125367366,
'bias_phipi': -0.011760307068424666,
'noise': 1.329931092693412}}
gradient:
{ 'fluxonium': { 'ec': 0.0852407690086682,
'ej': -0.12042693086158618,
'el': 0.07377661542432062},
'~': { 'bandwidth': 0.087144023063144,
'bias_phi0': -0.11763572325733263,
'bias_phipi': -0.4173468466029189,
'noise': -0.08908089105701136}}
loss: 13.798103
step: 73
parameters:
{ 'fluxonium': { 'ec': 1.5550886293347495,
'ej': 2.715042145612696,
'el': 0.3944349410039625},
'~': { 'bandwidth': 0.13591479583372443,
'bias_phi0': -0.6919873607958039,
'bias_phipi': -0.009631022390566553,
'noise': 1.3308543205912793}}
gradient:
{ 'fluxonium': { 'ec': 0.05760970555197467,
'ej': -0.13336036863434503,
'el': -0.11987560612039241},
'~': { 'bandwidth': 0.08389104991891963,
'bias_phi0': -0.21198990657743166,
'bias_phipi': 0.10657938340965933,
'noise': -0.0895530786982189}}
loss: 13.797357
step: 74
parameters:
{ 'fluxonium': { 'ec': 1.5536238203143011,
'ej': 2.7177288828686597,
'el': 0.39380353727821815},
'~': { 'bandwidth': 0.13404181445568902,
'bias_phi0': -0.6894522584178453,
'bias_phipi': -0.012126461366951728,
'noise': 1.3328567259886537}}
gradient:
{ 'fluxonium': { 'ec': 0.08760709046059958,
'ej': -0.12864134690932946,
'el': 0.07172457228942519},
'~': { 'bandwidth': 0.09202899723780972,
'bias_phi0': -0.11663087041684356,
'bias_phipi': -0.43724284520032913,
'noise': -0.09059937919397085}}
loss: 13.796550
step: 75
parameters:
{ 'fluxonium': { 'ec': 1.5527331065287102,
'ej': 2.7189598429592587,
'el': 0.3921084409537573},
'~': { 'bandwidth': 0.13309289705353528,
'bias_phi0': -0.689011809274036,
'bias_phipi': -0.009882882806331386,
'noise': 1.3338002389889363}}
gradient:
{ 'fluxonium': { 'ec': 0.05712874503372989,
'ej': -0.1428524517468508,
'el': -0.14211189213767064},
'~': { 'bandwidth': 0.08768982266027339,
'bias_phi0': -0.21916821089931315,
'bias_phipi': 0.1526825696939954,
'noise': -0.09112453026516029}}
loss: 13.795803
step: 76
parameters:
{ 'fluxonium': { 'ec': 1.551519741633227,
'ej': 2.7213232940445677,
'el': 0.39178497460560513},
'~': { 'bandwidth': 0.13147569503664244,
'bias_phi0': -0.6869116730680046,
'bias_phipi': -0.012403228814408196,
'noise': 1.3354693928177774}}
gradient:
{ 'fluxonium': { 'ec': 0.0886503079192637,
'ej': -0.13785201378800424,
'el': 0.053083876065393665},
'~': { 'bandwidth': 0.0969864890014634,
'bias_phi0': -0.12519274290893534,
'bias_phipi': -0.4503173992906512,
'noise': -0.09207268398760901}}
loss: 13.795094
step: 77
parameters:
{ 'fluxonium': { 'ec': 1.5507176355825243,
'ej': 2.722485564423961,
'el': 0.3903255610530013},
'~': { 'bandwidth': 0.13059375166368886,
'bias_phi0': -0.6865331393661661,
'bias_phipi': -0.010377099092722738,
'noise': 1.3363176300421062}}
gradient:
{ 'fluxonium': { 'ec': 0.060865114782056945,
'ej': -0.1495521003190071,
'el': -0.1297164823047112},
'~': { 'bandwidth': 0.09322318965808676,
'bias_phi0': -0.20795376586460398,
'bias_phipi': 0.12241173770466149,
'noise': -0.09254480504882548}}
loss: 13.794356
step: 78
parameters:
{ 'fluxonium': { 'ec': 1.549350856351739,
'ej': 2.725178203706684,
'el': 0.3898469638606749},
'~': { 'bandwidth': 0.12875295697021993,
'bias_phi0': -0.6844227133641615,
'bias_phipi': -0.012723029548955723,
'noise': 1.3381484273441315}}
gradient:
{ 'fluxonium': { 'ec': 0.09082059992148518,
'ej': -0.1460656292070667,
'el': 0.051675757961474555},
'~': { 'bandwidth': 0.10180780515562836,
'bias_phi0': -0.1210968925469823,
'bias_phipi': -0.4717694273592319,
'noise': -0.09369453851163247}}
loss: 13.793572
step: 79
parameters:
{ 'fluxonium': { 'ec': 1.5485326290382444,
'ej': 2.726410487675303,
'el': 0.3883796366435562},
'~': { 'bandwidth': 0.12782979975684922,
'bias_phi0': -0.6841026706788264,
'bias_phipi': -0.010600529787682394,
'noise': 1.3390087764315501}}
gradient:
{ 'fluxonium': { 'ec': 0.060287789940041775,
'ej': -0.15896221747231856,
'el': -0.150696731257334},
'~': { 'bandwidth': 0.09698103845410067,
'bias_phi0': -0.21174634193041825,
'bias_phipi': 0.1672765230276833,
'noise': -0.09420910527520188}}
loss: 13.792834
step: 80
parameters:
{ 'fluxonium': { 'ec': 1.5473818835343789,
'ej': 2.7288028370491855,
'el': 0.3881419145108791},
'~': { 'bandwidth': 0.12621966352235878,
'bias_phi0': -0.6823698098439515,
'bias_phipi': -0.012947489518571295,
'noise': 1.3405639224337278}}
gradient:
{ 'fluxonium': { 'ec': 0.0913142318934798,
'ej': -0.1558868769622321,
'el': 0.025433491811077735},
'~': { 'bandwidth': 0.10688563524031978,
'bias_phi0': -0.13235478776199378,
'bias_phipi': -0.48391872457162627,
'noise': -0.09526504887499465}}
loss: 13.792134
step: 81
parameters:
{ 'fluxonium': { 'ec': 1.5466398754834028,
'ej': 2.729972871553102,
'el': 0.38688864246631777},
'~': { 'bandwidth': 0.12535535401800169,
'bias_phi0': -0.6820956472256323,
'bias_phipi': -0.011027002788360725,
'noise': 1.3413469691161164}}
gradient:
{ 'fluxonium': { 'ec': 0.06361917256802696,
'ej': -0.16575828653365976,
'el': -0.14064424729341096},
'~': { 'bandwidth': 0.10234158648180437,
'bias_phi0': -0.20008091272830908,
'bias_phipi': 0.13853641339933098,
'noise': -0.09573156830682122}}
loss: 13.791408
step: 82
parameters:
{ 'fluxonium': { 'ec': 1.5453710127383202,
'ej': 2.732645716915498,
'el': 0.38655957647718775},
'~': { 'bandwidth': 0.12355974258998996,
'bias_phi0': -0.680400099851683,
'bias_phipi': -0.013222839779567914,
'noise': 1.3430294921266133}}
gradient:
{ 'fluxonium': { 'ec': 0.09349259954091914,
'ej': -0.1636649434350815,
'el': 0.025689473698918053},
'~': { 'bandwidth': 0.11155994681667093,
'bias_phi0': -0.12559475405933762,
'bias_phipi': -0.5065750374079732,
'noise': -0.0969662606496052}}
loss: 13.790648
step: 83
parameters:
{ 'fluxonium': { 'ec': 1.544619948829724,
'ej': 2.7338676635597667,
'el': 0.38530564403363404},
'~': { 'bandwidth': 0.12266547913702627,
'bias_phi0': -0.6801923603262598,
'bias_phipi': -0.011220607305185513,
'noise': 1.3438189732267987}}
gradient:
{ 'fluxonium': { 'ec': 0.06310228863089096,
'ej': -0.1747284188474445,
'el': -0.16030595058694885},
'~': { 'bandwidth': 0.1060086840892883,
'bias_phi0': -0.20179624083773198,
'bias_phipi': 0.18225197206853197,
'noise': -0.09746824970938332}}
loss: 13.789922
step: 84
parameters:
{ 'fluxonium': { 'ec': 1.5435287980728327,
'ej': 2.736269409196947,
'el': 0.38515283634068476},
'~': { 'bandwidth': 0.12106995767591243,
'bias_phi0': -0.6788032428925047,
'bias_phipi': -0.013409383030157351,
'noise': 1.3452780011554162}}
gradient:
{ 'fluxonium': { 'ec': 0.09374596121765431,
'ej': -0.17373157384052323,
'el': -0.007218299426738406},
'~': { 'bandwidth': 0.11676096544772231,
'bias_phi0': -0.14032706933656092,
'bias_phipi': -0.5204746720710649,
'noise': -0.09862142108204974}}
loss: 13.789230
step: 85
parameters:
{ 'fluxonium': { 'ec': 1.5428442761531649,
'ej': 2.7374285792528004,
'el': 0.3840896223032757},
'~': { 'bandwidth': 0.1202300589516462,
'bias_phi0': -0.678625199283592,
'bias_phipi': -0.011592424104527542,
'noise': 1.346001394262385}}
gradient:
{ 'fluxonium': { 'ec': 0.06629313887194588,
'ej': -0.18132782077990128,
'el': -0.15224381848295473},
'~': { 'bandwidth': 0.11133246593738418,
'bias_phi0': -0.19095391217001273,
'bias_phipi': 0.15295669889234026,
'noise': -0.0990785681470579}}
loss: 13.788514
step: 86
parameters:
{ 'fluxonium': { 'ec': 1.5416566104049783,
'ej': 2.740070036353317,
'el': 0.38388527374310794},
'~': { 'bandwidth': 0.11847536618674008,
'bias_phi0': -0.6772873326483185,
'bias_phipi': -0.013646889312137554,
'noise': 1.347565403473654}}
gradient:
{ 'fluxonium': { 'ec': 0.09622963861105503,
'ej': -0.1805590660942618,
'el': -0.0023183397132580663},
'~': { 'bandwidth': 0.12135481919442458,
'bias_phi0': -0.13046219777807588,
'bias_phipi': -0.5439944183143924,
'noise': -0.10039417173958684}}
loss: 13.787770
step: 87
parameters:
{ 'fluxonium': { 'ec': 1.5409655007497822,
'ej': 2.7412652847136667,
'el': 0.3828142480189679},
'~': { 'bandwidth': 0.1176126489097287,
'bias_phi0': -0.6771751867209977,
'bias_phipi': -0.011756069186677513,
'noise': 1.3482922015198489}}
gradient:
{ 'fluxonium': { 'ec': 0.06590898207621729,
'ej': -0.18967256578792457,
'el': -0.1711865684220238},
'~': { 'bandwidth': 0.11503410305387242,
'bias_phi0': -0.19244252481425633,
'bias_phipi': 0.19695360972302461,
'noise': -0.10088540068761243}}
loss: 13.787052
step: 88
parameters:
{ 'fluxonium': { 'ec': 1.5399258389778494,
'ej': 2.7436550299907827,
'el': 0.3827340784698792},
'~': { 'bandwidth': 0.11603335239956968,
'bias_phi0': -0.6760762550901864,
'bias_phipi': -0.01380523257903531,
'noise': 1.349669783225512}}
gradient:
{ 'fluxonium': { 'ec': 0.09645235144083592,
'ej': -0.190624998772074,
'el': -0.041130775818782495},
'~': { 'bandwidth': 0.12682527752267214,
'bias_phi0': -0.14957184503002097,
'bias_phipi': -0.5611857273305598,
'noise': -0.10213211841219241}}
loss: 13.786364
step: 89
parameters:
{ 'fluxonium': { 'ec': 1.5392940054037176,
'ej': 2.7447834849901636,
'el': 0.38183130551827044},
'~': { 'bandwidth': 0.11522224152937267,
'bias_phi0': -0.6759765020680113,
'bias_phipi': -0.0120855528117789,
'noise': 1.350337511050988}}
gradient:
{ 'fluxonium': { 'ec': 0.06916402163585603,
'ej': -0.195888266952626,
'el': -0.16452591158664207},
'~': { 'bandwidth': 0.12056418568598912,
'bias_phi0': -0.18339098849550747,
'bias_phipi': 0.16535816226502606,
'noise': -0.10258070295090706}}
loss: 13.785652
step: 90
parameters:
{ 'fluxonium': { 'ec': 1.5381704051046092,
'ej': 2.747380655194741,
'el': 0.38172336178781435},
'~': { 'bandwidth': 0.11349934320167133,
'bias_phi0': -0.6749199893532591,
'bias_phipi': -0.01401430332708217,
'noise': 1.3518058356199574}}
gradient:
{ 'fluxonium': { 'ec': 0.09949682326886852,
'ej': -0.1961151249183788,
'el': -0.028064916719580668},
'~': { 'bandwidth': 0.13146943662124516,
'bias_phi0': -0.13553361062689573,
'bias_phipi': -0.5859455768886078,
'noise': -0.10398179088179858}}
loss: 13.784915
step: 91
parameters:
{ 'fluxonium': { 'ec': 1.5375361761464703,
'ej': 2.748524703517449,
'el': 0.38080259865886645},
'~': { 'bandwidth': 0.11267474994902,
'bias_phi0': -0.6748826319595637,
'bias_phipi': -0.012231639495011975,
'noise': 1.3524711262978684}}
gradient:
{ 'fluxonium': { 'ec': 0.06909772800844502,
'ej': -0.20351755512245387,
'el': -0.18203066826609504},
'~': { 'bandwidth': 0.12460039289646373,
'bias_phi0': -0.1854191095285421,
'bias_phipi': 0.20696888570364533,
'noise': -0.10446238775077861}}
loss: 13.784199
step: 92
parameters:
{ 'fluxonium': { 'ec': 1.536530068528329,
'ej': 2.7509025321445955,
'el': 0.3807752921923774},
'~': { 'bandwidth': 0.11109471618338033,
'bias_phi0': -0.6740006860045143,
'bias_phipi': -0.014157361352495467,
'noise': 1.3537898569452478}}
gradient:
{ 'fluxonium': { 'ec': 0.09997491219112192,
'ej': -0.205843560767686,
'el': -0.06886383584259165},
'~': { 'bandwidth': 0.13732445855396933,
'bias_phi0': -0.15736888882555677,
'bias_phipi': -0.6086580398500029,
'noise': -0.10581652684597873}}
loss: 13.783509
step: 93
parameters:
{ 'fluxonium': { 'ec': 1.5359496254256957,
'ej': 2.751974386164255,
'el': 0.3799971786747883},
'~': { 'bandwidth': 0.11032040347039312,
'bias_phi0': -0.6739633657559249,
'bias_phipi': -0.012525929094029595,
'noise': 1.3544004835150152}}
gradient:
{ 'fluxonium': { 'ec': 0.07245931115515686,
'ej': -0.2093352536623903,
'el': -0.1764328440967804},
'~': { 'bandwidth': 0.1305292037696242,
'bias_phi0': -0.1785273908967808,
'bias_phipi': 0.17336439956090574,
'noise': -0.1062559346704085}}
loss: 13.782792
step: 94
parameters:
{ 'fluxonium': { 'ec': 1.5348684714560858,
'ej': 2.754533001540352,
'el': 0.37995649917354873},
'~': { 'bandwidth': 0.10860611287757645,
'bias_phi0': -0.6731080906000476,
'bias_phipi': -0.014344334440719548,
'noise': 1.355799421617828}}
gradient:
{ 'fluxonium': { 'ec': 0.10363132092229513,
'ej': -0.2099890514118053,
'el': -0.04648828213647438},
'~': { 'bandwidth': 0.14217830334832393,
'bias_phi0': -0.13895161639859877,
'bias_phipi': -0.6349425542692914,
'noise': -0.10776326099338852}}
loss: 13.782053
step: 95
parameters:
{ 'fluxonium': { 'ec': 1.5342884380333508,
'ej': 2.755604669206398,
'el': 0.37914899948459635},
'~': { 'bandwidth': 0.10782489333893618,
'bias_phi0': -0.6731273304293064,
'bias_phipi': -0.01265742929759747,
'noise': 1.3564036577414609}}
gradient:
{ 'fluxonium': { 'ec': 0.07264771010377363,
'ej': -0.21636873573244092,
'el': -0.19281439454747185},
'~': { 'bandwidth': 0.13507243158837132,
'bias_phi0': -0.18154420629626522,
'bias_phipi': 0.21372928642564504,
'noise': -0.10823424627963894}}
loss: 13.781333
step: 96
parameters:
{ 'fluxonium': { 'ec': 1.5333080065509175,
'ej': 2.757958552514445,
'el': 0.3791600359042271},
'~': { 'bandwidth': 0.10623539962077277,
'bias_phi0': -0.6724019874671423,
'bias_phipi': -0.014473195101988728,
'noise': 1.35767357755943}}
gradient:
{ 'fluxonium': { 'ec': 0.10430663723503644,
'ej': -0.2194497991270216,
'el': -0.0891729500357426},
'~': { 'bandwidth': 0.14855786419720637,
'bias_phi0': -0.16361649482345553,
'bias_phipi': -0.662466101091183,
'noise': -0.1097080639503464}}
loss: 13.780638
step: 97
parameters:
{ 'fluxonium': { 'ec': 1.5327786705400002,
'ej': 2.7589533958992076,
'el': 0.37847739384549745},
'~': { 'bandwidth': 0.1055044965799551,
'bias_phi0': -0.6724103457318445,
'bias_phipi': -0.012927441239723133,
'noise': 1.358225946250781}}
gradient:
{ 'fluxonium': { 'ec': 0.07621092080465552,
'ej': -0.22180068183322244,
'el': -0.1870963531163611},
'~': { 'bandwidth': 0.14158257214590947,
'bias_phi0': -0.1762759169889595,
'bias_phipi': 0.1757241033210285,
'noise': -0.11013773675643514}}
loss: 13.779914
step: 98
parameters:
{ 'fluxonium': { 'ec': 1.531723930057555,
'ej': 2.7614803232936693,
'el': 0.3784805339820822},
'~': { 'bandwidth': 0.10377660029830449,
'bias_phi0': -0.6716931741564501,
'bias_phipi': -0.01464181698382333,
'noise': 1.3595755766051818}}
gradient:
{ 'fluxonium': { 'ec': 0.10859267329841313,
'ej': -0.2222112238764402,
'el': -0.05529198736941077},
'~': { 'bandwidth': 0.1536908353731711,
'bias_phi0': -0.139355774373629,
'bias_phipi': -0.6894531568848596,
'noise': -0.11177600458700905}}
loss: 13.779165
step: 99
parameters:
{ 'fluxonium': { 'ec': 1.531192222316525,
'ej': 2.7624729616102357,
'el': 0.37775081616852874},
'~': { 'bandwidth': 0.10303675398128152,
'bias_phi0': -0.6717543548469043,
'bias_phipi': -0.013034434694885074,
'noise': 1.3601241760715068}}
gradient:
{ 'fluxonium': { 'ec': 0.07625168476974753,
'ej': -0.2285253162090785,
'el': -0.2046714942445963},
'~': { 'bandwidth': 0.14658288419665466,
'bias_phi0': -0.18112138828641755,
'bias_phipi': 0.22288902941532762,
'noise': -0.11224462037065695}}
loss: 13.778438
step: 100
parameters:
{ 'fluxonium': { 'ec': 1.530249286044327,
'ej': 2.7647562400786936,
'el': 0.3777896762540861},
'~': { 'bandwidth': 0.10145568640565787,
'bias_phi0': -0.671148477350161,
'bias_phipi': -0.014744465436939622,
'noise': 1.3613327134734163}}
gradient:
{ 'fluxonium': { 'ec': 0.10886021557020426,
'ej': -0.23216270634837913,
'el': -0.10798425806296641},
'~': { 'bandwidth': 0.16083173859794844,
'bias_phi0': -0.17162421461281563,
'bias_phipi': -0.716378683050651,
'noise': -0.1138290976552273}}
loss: 13.777741
step: 101
parameters:
{ 'fluxonium': { 'ec': 1.529765192841729,
'ej': 2.7656750953549465,
'el': 0.37718274569866567},
'~': { 'bandwidth': 0.10076306859562766,
'bias_phi0': -0.671183583565986,
'bias_phipi': -0.013287001654214847,
'noise': 1.3618342298301185}}
gradient:
{ 'fluxonium': { 'ec': 0.08004101285849924,
'ej': -0.23361050283922413,
'el': -0.19804755396543047},
'~': { 'bandwidth': 0.15376185780827215,
'bias_phi0': -0.17690291817626635,
'bias_phipi': 0.17819211178331573,
'noise': -0.11425817398309086}}
loss: 13.777013
step: 102
parameters:
{ 'fluxonium': { 'ec': 1.5287462827521185,
'ej': 2.7681320538314385,
'el': 0.37721682881682356},
'~': { 'bandwidth': 0.09903452133449515,
'bias_phi0': -0.6705693085749967,
'bias_phipi': -0.014898226133857518,
'noise': 1.3631258195453924}}
gradient:
{ 'fluxonium': { 'ec': 0.11377413295406003,
'ej': -0.2334582605365098,
'el': -0.06031245618221237},
'~': { 'bandwidth': 0.16621058526044383,
'bias_phi0': -0.13982279091371552,
'bias_phipi': -0.7436975269169441,
'noise': -0.116023814703485}}
loss: 13.776256
step: 103
parameters:
{ 'fluxonium': { 'ec': 1.5282575990402918,
'ej': 2.769048370074435,
'el': 0.3765472547999615},
'~': { 'bandwidth': 0.09833090960233877,
'bias_phi0': -0.6706566566475027,
'bias_phipi': -0.013372551123796783,
'noise': 1.3636260119375325}}
gradient:
{ 'fluxonium': { 'ec': 0.07979156256225978,
'ej': -0.24016944963894304,
'el': -0.21734721457984718},
'~': { 'bandwidth': 0.15924105807889216,
'bias_phi0': -0.18355311388691328,
'bias_phipi': 0.2333893569985169,
'noise': -0.11649959002878026}}
loss: 13.775526
step: 104
parameters:
{ 'fluxonium': { 'ec': 1.5273638962321319,
'ej': 2.771223298266267,
'el': 0.37660484272563954},
'~': { 'bandwidth': 0.09677592011648846,
'bias_phi0': -0.6701414707819927,
'bias_phipi': -0.014974846281613313,
'noise': 1.3647627928947255}}
gradient:
{ 'fluxonium': { 'ec': 0.11340177258411793,
'ej': -0.24411124818300975,
'el': -0.12466459093609561},
'~': { 'bandwidth': 0.17415484517420035,
'bias_phi0': -0.18025214591166183,
'bias_phipi': -0.7672480998815264,
'noise': -0.11818121730081563}}
loss: 13.774831
step: 105
parameters:
{ 'fluxonium': { 'ec': 1.5269182511249615,
'ej': 2.772074635387487,
'el': 0.37605660875705016},
'~': { 'bandwidth': 0.0961134886893622,
'bias_phi0': -0.6701914622576699,
'bias_phipi': -0.013604161806811604,
'noise': 1.3652225269369624}}
gradient:
{ 'fluxonium': { 'ec': 0.0836021016771919,
'ej': -0.24500242951090542,
'el': -0.2103357622961492},
'~': { 'bandwidth': 0.16700448477183266,
'bias_phi0': -0.18020031424861319,
'bias_phipi': 0.18511752994212263,
'noise': -0.1186225298027071}}
loss: 13.774104
step: 106
parameters:
{ 'fluxonium': { 'ec': 1.5259546153793904,
'ej': 2.7744097277655864,
'el': 0.3761130983517663},
'~': { 'bandwidth': 0.0944136157864908,
'bias_phi0': -0.6696595943179596,
'bias_phipi': -0.015115845536467939,
'noise': 1.3664376278648602}}
gradient:
{ 'fluxonium': { 'ec': 0.11869088837670982,
'ej': -0.24439637877437165,
'el': -0.06744969539573697},
'~': { 'bandwidth': 0.17982850582129387,
'bias_phi0': -0.14345997527140497,
'bias_phipi': -0.7965559223364889,
'noise': -0.12049415363968852}}
loss: 13.773351
step: 107
parameters:
{ 'fluxonium': { 'ec': 1.5255065844931588,
'ej': 2.775252714960506,
'el': 0.37549954408626524},
'~': { 'bandwidth': 0.0937435609262611,
'bias_phi0': -0.6697589117822311,
'bias_phipi': -0.013681132501592225,
'noise': 1.3668944506827063}}
gradient:
{ 'fluxonium': { 'ec': 0.08324237698817338,
'ej': -0.25134177903623134,
'el': -0.2294180781009824},
'~': { 'bandwidth': 0.17308000132687648,
'bias_phi0': -0.18748715610482974,
'bias_phipi': 0.2417973243280886,
'noise': -0.12098190938905372}}
loss: 13.772621
step: 108
parameters:
{ 'fluxonium': { 'ec': 1.5246607306744662,
'ej': 2.777319501023856,
'el': 0.37556781917328025},
'~': { 'bandwidth': 0.09221072026079079,
'bias_phi0': -0.6693089600968771,
'bias_phipi': -0.015181864860773922,
'noise': 1.3679665130279053}}
gradient:
{ 'fluxonium': { 'ec': 0.11805872326906408,
'ej': -0.25527699039188956,
'el': -0.13652292382793096},
'~': { 'bandwidth': 0.1884143365212341,
'bias_phi0': -0.187544420201736,
'bias_phipi': -0.821770513844065,
'noise': -0.12276722670122973}}
loss: 13.771930
step: 109
parameters:
{ 'fluxonium': { 'ec': 1.5242534931556155,
'ej': 2.7781002274094915,
'el': 0.37506748122268146},
'~': { 'bandwidth': 0.09158081413783996,
'bias_phi0': -0.6693688057025404,
'bias_phipi': -0.01389473025181315,
'noise': 1.368385851995074}}
gradient:
{ 'fluxonium': { 'ec': 0.08702916712538761,
'ej': -0.25598648764261783,
'el': -0.22178016406362408},
'~': { 'bandwidth': 0.18144245595888417,
'bias_phi0': -0.18456980937395928,
'bias_phipi': 0.18942621190430708,
'noise': -0.12322046704189481}}
loss: 13.771206
step: 110
parameters:
{ 'fluxonium': { 'ec': 1.5233421081213252,
'ej': 2.7803192985709995,
'el': 0.37513659519389636},
'~': { 'bandwidth': 0.08990257454534208,
'bias_phi0': -0.6688971618274158,
'bias_phipi': -0.015309893933691681,
'noise': 1.3695339466191576}}
gradient:
{ 'fluxonium': { 'ec': 0.12362041821583325,
'ej': -0.25463379830696947,
'el': -0.06974609367342965},
'~': { 'bandwidth': 0.19440213856061628,
'bias_phi0': -0.14543136830714232,
'bias_phipi': -0.8519161494813203,
'noise': -0.1252084895499942}}
loss: 13.770453
step: 111
parameters:
{ 'fluxonium': { 'ec': 1.522933035817733,
'ej': 2.781090592921116,
'el': 0.37456864569297427},
'~': { 'bandwidth': 0.0892655827126596,
'bias_phi0': -0.6690042300130216,
'bias_phipi': -0.013961662379312999,
'noise': 1.3699508012649184}}
gradient:
{ 'fluxonium': { 'ec': 0.08636278179791529,
'ej': -0.2622819491473456,
'el': -0.2419589182404204},
'~': { 'bandwidth': 0.1881163271551178,
'bias_phi0': -0.19289770479254348,
'bias_phipi': 0.24991772861533684,
'noise': -0.12571076518223928}}
loss: 13.769726
step: 112
parameters:
{ 'fluxonium': { 'ec': 1.5221401789637785,
'ej': 2.783039176145956,
'el': 0.37464434236070066},
'~': { 'bandwidth': 0.08776173647494846,
'bias_phi0': -0.668604922599511,
'bias_phipi': -0.015363739670496195,
'noise': 1.3709576314791065}}
gradient:
{ 'fluxonium': { 'ec': 0.12254072208845518,
'ej': -0.2658952414976905,
'el': -0.1449657478029609},
'~': { 'bandwidth': 0.20366527708406906,
'bias_phi0': -0.1937340038627401,
'bias_phipi': -0.8766997447897887,
'noise': -0.1275940493096815}}
loss: 13.769041
step: 113
parameters:
{ 'fluxonium': { 'ec': 1.521769346705143,
'ej': 2.783752836432568,
'el': 0.3741840188718154},
'~': { 'bandwidth': 0.08716297325407305,
'bias_phi0': -0.6686709163053087,
'bias_phipi': -0.014158124242006185,
'noise': 1.3713403915700142}}
gradient:
{ 'fluxonium': { 'ec': 0.09006048388435167,
'ej': -0.2667514152904693,
'el': -0.2334852675179772},
'~': { 'bandwidth': 0.19705209453918288,
'bias_phi0': -0.19005475523508886,
'bias_phipi': 0.19371052446371317,
'noise': -0.12806276694420984}}
loss: 13.768322
step: 114
parameters:
{ 'fluxonium': { 'ec': 1.5209157275753633,
'ej': 2.7858460942044134,
'el': 0.3742610106805468},
'~': { 'bandwidth': 0.08551395794440625,
'bias_phi0': -0.668247970189025,
'bias_phipi': -0.015478947855381654,
'noise': 1.3724208444292674}}
gradient:
{ 'fluxonium': { 'ec': 0.12822737444009194,
'ej': -0.26449252901381914,
'el': -0.07018779928965901},
'~': { 'bandwidth': 0.20999700109167457,
'bias_phi0': -0.14711485264518542,
'bias_phipi': -0.9073228407738537,
'noise': -0.13016187561836523}}
loss: 13.767573
step: 115
parameters:
{ 'fluxonium': { 'ec': 1.520543589817317,
'ej': 2.786550299855452,
'el': 0.37373360244598586},
'~': { 'bandwidth': 0.08490829485866962,
'bias_phi0': -0.66835862812387,
'bias_phipi': -0.014216578494202865,
'noise': 1.3728016934370986}}
gradient:
{ 'fluxonium': { 'ec': 0.08901064773403566,
'ej': -0.2730632619669273,
'el': -0.2551239345904769},
'~': { 'bandwidth': 0.20434499331043182,
'bias_phi0': -0.1994782545494529,
'bias_phipi': 0.2576612756182237,
'noise': -0.13068198928251637}}
loss: 13.766852
step: 116
parameters:
{ 'fluxonium': { 'ec': 1.5198078313277352,
'ej': 2.788375134282308,
'el': 0.3738150945092934},
'~': { 'bandwidth': 0.08343977537229837,
'bias_phi0': -0.6680000327318533,
'bias_phipi': -0.015523289570526755,
'noise': 1.3737437336329095}}
gradient:
{ 'fluxonium': { 'ec': 0.1267194538227529,
'ej': -0.2760109944673486,
'el': -0.14987544036232148},
'~': { 'bandwidth': 0.21988634539480054,
'bias_phi0': -0.19841711439403698,
'bias_phipi': -0.9317870869603664,
'noise': -0.13265608196827605}}
loss: 13.766176
step: 117
parameters:
{ 'fluxonium': { 'ec': 1.5194715339147022,
'ej': 2.7890258348688115,
'el': 0.37338884264114847},
'~': { 'bandwidth': 0.08287096317691892,
'bias_phi0': -0.6680700257435116,
'bias_phipi': -0.014396611926779457,
'noise': 1.3740933426375783}}
gradient:
{ 'fluxonium': { 'ec': 0.0925626206382868,
'ej': -0.2773461784247935,
'el': -0.24558636423842078},
'~': { 'bandwidth': 0.21382230643047015,
'bias_phi0': -0.19641036040154614,
'bias_phipi': 0.19792670521928923,
'noise': -0.13314299172484767}}
loss: 13.765465
step: 118
parameters:
{ 'fluxonium': { 'ec': 1.518679970678435,
'ej': 2.790987808700345,
'el': 0.3734707246780371},
'~': { 'bandwidth': 0.08125822541069895,
'bias_phi0': -0.6676879610731274,
'bias_phipi': -0.015625805517786254,
'noise': 1.3751064737867398}}
gradient:
{ 'fluxonium': { 'ec': 0.13238101996381568,
'ej': -0.27401352877678964,
'el': -0.06890965330058296},
'~': { 'bandwidth': 0.2265987380222416,
'bias_phi0': -0.14832248576994134,
'bias_phipi': -0.9624647140097208,
'noise': -0.13534623130401002}}
loss: 13.764722
step: 119
parameters:
{ 'fluxonium': { 'ec': 1.5183426785863023,
'ej': 2.791630043309753,
'el': 0.37297982977175814},
'~': { 'bandwidth': 0.08068212685829786,
'bias_phi0': -0.6677995634229121,
'bias_phipi': -0.014447226512395552,
'noise': 1.3754549972899823}}
gradient:
{ 'fluxonium': { 'ec': 0.09104028465516084,
'ej': -0.2837169652212994,
'el': -0.2691569183999433},
'~': { 'bandwidth': 0.22173744775067528,
'bias_phi0': -0.20708925967746283,
'bias_phipi': 0.26548952546620275,
'noise': -0.135887059714058}}
loss: 13.764010
step: 120
parameters:
{ 'fluxonium': { 'ec': 1.5176675978815828,
'ej': 2.793327147179522,
'el': 0.373066160307037},
'~': { 'bandwidth': 0.07925619015789519,
'bias_phi0': -0.667475123378487,
'bias_phipi': -0.015661990963529528,
'noise': 1.3763325036481255}}
gradient:
{ 'fluxonium': { 'ec': 0.13043092901050346,
'ej': -0.28568928687194395,
'el': -0.1519292835248457},
'~': { 'bandwidth': 0.23706640980899404,
'bias_phi0': -0.2017850598966886,
'bias_phipi': -0.9861600111718904,
'noise': -0.13794157043925537}}
loss: 13.763345
step: 121
parameters:
{ 'fluxonium': { 'ec': 1.5173637008304046,
'ej': 2.7939199382998985,
'el': 0.3726696344686587},
'~': { 'bandwidth': 0.07871562748634497,
'bias_phi0': -0.667547507770393,
'bias_phipi': -0.014611395812883548,
'noise': 1.3766524098487818}}
gradient:
{ 'fluxonium': { 'ec': 0.09439078666799061,
'ej': -0.2877880607500364,
'el': -0.2583794996761942},
'~': { 'bandwidth': 0.2317123087325641,
'bias_phi0': -0.20357998298779825,
'bias_phipi': 0.2026721332930476,
'noise': -0.1384494669074695}}
loss: 13.762646
step: 122
parameters:
{ 'fluxonium': { 'ec': 1.5166381324836284,
'ej': 2.7957459869037544,
'el': 0.3727546110349239},
'~': { 'bandwidth': 0.07714776207780992,
'bias_phi0': -0.6672011283184202,
'bias_phipi': -0.015752446594659908,
'noise': 1.3775980126642589}}
gradient:
{ 'fluxonium': { 'ec': 0.1359259293802933,
'ej': -0.2832578324079045,
'el': -0.06677185682061904},
'~': { 'bandwidth': 0.24418823876251125,
'bias_phi0': -0.1494187766070436,
'bias_phipi': -1.016850500563333,
'noise': -0.1407455162216964}}
loss: 13.761913
step: 123
parameters:
{ 'fluxonium': { 'ec': 1.5163335689022657,
'ej': 2.796331526413688,
'el': 0.37229742538873223},
'~': { 'bandwidth': 0.07659946740294392,
'bias_phi0': -0.6673116125697233,
'bias_phipi': -0.014655017345659816,
'noise': 1.3779175849765553}}
gradient:
{ 'fluxonium': { 'ec': 0.0923334177747619,
'ej': -0.2942206024143177,
'el': -0.284089748011549},
'~': { 'bandwidth': 0.24023710744636884,
'bias_phi0': -0.2155751793983396,
'bias_phipi': 0.27361671391493325,
'noise': -0.1413093460830015}}
loss: 13.761213
step: 124
parameters:
{ 'fluxonium': { 'ec': 1.5157211262475956,
'ej': 2.7979000462906254,
'el': 0.372387644133223},
'~': { 'bandwidth': 0.07522246147866302,
'bias_phi0': -0.6670166616439684,
'bias_phipi': -0.015781826880662007,
'noise': 1.3787316886741965}}
gradient:
{ 'fluxonium': { 'ec': 0.13353821336353827,
'ej': -0.2949633796481483,
'el': -0.1517799864412066},
'~': { 'bandwidth': 0.2551679749780205,
'bias_phi0': -0.20412306031198857,
'bias_phipi': -1.0394948167519882,
'noise': -0.14343278864870085}}
loss: 13.760563
step: 125
parameters:
{ 'fluxonium': { 'ec': 1.5154474916514566,
'ej': 2.798439995626602,
'el': 0.37201767330336083},
'~': { 'bandwidth': 0.07470846327994879,
'bias_phi0': -0.6670901394804187,
'bias_phipi': -0.014804024405706577,
'noise': 1.379025031586097}}
gradient:
{ 'fluxonium': { 'ec': 0.09543044602130807,
'ej': -0.29805177391185156,
'el': -0.2719732702048183},
'~': { 'bandwidth': 0.25065698627230687,
'bias_phi0': -0.21149495529769427,
'bias_phipi': 0.2081383341982316,
'noise': -0.1439638178976862}}
loss: 13.759878
step: 126
parameters:
{ 'fluxonium': { 'ec': 1.5147901261945058,
'ej': 2.8001286535026133,
'el': 0.3721044986140772},
'~': { 'bandwidth': 0.07319318134757984,
'bias_phi0': -0.6667754589609161,
'bias_phipi': -0.01586122490323043,
'noise': 1.379903801559654}}
gradient:
{ 'fluxonium': { 'ec': 0.1387495785904499,
'ej': -0.29222358155805456,
'el': -0.06415211449147595},
'~': { 'bandwidth': 0.26270753172436123,
'bias_phi0': -0.15054616145017552,
'bias_phipi': -1.0704061840898527,
'noise': -0.14633960770438087}}
loss: 13.759158
step: 127
parameters:
{ 'fluxonium': { 'ec': 1.5145162411879547,
'ej': 2.800662415526346,
'el': 0.37167876830125135},
'~': { 'bandwidth': 0.0726712139192529,
'bias_phi0': -0.6668833170237621,
'bias_phipi': -0.014841550721862273,
'noise': 1.3801973607182492}}
gradient:
{ 'fluxonium': { 'ec': 0.09279383803681984,
'ej': -0.3045244470244396,
'el': -0.29985674254885886},
'~': { 'bandwidth': 0.25976015055755175,
'bias_phi0': -0.22479876152392292,
'bias_phipi': 0.2820128266528959,
'noise': -0.14692775840257014}}
loss: 13.758473
step: 128
parameters:
{ 'fluxonium': { 'ec': 1.5139665541143446,
'ej': 2.8021047524998663,
'el': 0.371771872523376},
'~': { 'bandwidth': 0.07134783838242668,
'bias_phi0': -0.6666142142362306,
'bias_phipi': -0.015884963566614046,
'noise': 1.3809503011253241}}
gradient:
{ 'fluxonium': { 'ec': 0.13593559497921115,
'ej': -0.3038212785987186,
'el': -0.14975815504469503},
'~': { 'bandwidth': 0.2741180005661382,
'bias_phi0': -0.20557435383714995,
'bias_phipi': -1.0917551252816295,
'noise': -0.14910874990076173}}
loss: 13.757838
step: 129
parameters:
{ 'fluxonium': { 'ec': 1.5137211433166058,
'ej': 2.8025965332774176,
'el': 0.3714260062930709},
'~': { 'bandwidth': 0.0708589900765708,
'bias_phi0': -0.6666877668556551,
'bias_phipi': -0.014976276476641195,
'noise': 1.3812198044921187}}
gradient:
{ 'fluxonium': { 'ec': 0.09559033564431324,
'ej': -0.3080881287845175,
'el': -0.28636419167876725},
'~': { 'bandwidth': 0.27056252423702976,
'bias_phi0': -0.220083979243183,
'bias_phipi': 0.21421011373374674,
'noise': -0.14966408850913446}}
loss: 13.757171
step: 130
parameters:
{ 'fluxonium': { 'ec': 1.5131321214226703,
'ej': 2.804149966908181,
'el': 0.37151372238330427},
'~': { 'bandwidth': 0.06940206392624088,
'bias_phi0': -0.66640135918547,
'bias_phipi': -0.01595442558584246,
'noise': 1.3820337385977937}}
gradient:
{ 'fluxonium': { 'ec': 0.14076935715184452,
'ej': -0.3008588271466216,
'el': -0.06099657566132388},
'~': { 'bandwidth': 0.2820576008425077,
'bias_phi0': -0.1516159778284656,
'bias_phipi': -1.123156216013147,
'noise': -0.15210643123319317}}
loss: 13.756466
step: 131
parameters:
{ 'fluxonium': { 'ec': 1.5128869357547907,
'ej': 2.8046363946632,
'el': 0.3711173624917397},
'~': { 'bandwidth': 0.06890527399785601,
'bias_phi0': -0.6665055925261638,
'bias_phipi': -0.01500853567063635,
'noise': 1.3823038138948822}}
gradient:
{ 'fluxonium': { 'ec': 0.09233963135758783,
'ej': -0.31456818827353794,
'el': -0.3163891350105671},
'~': { 'bandwidth': 0.280190863720434,
'bias_phi0': -0.2346692062154513,
'bias_phipi': 0.2904855117587122,
'noise': -0.15271923556277422}}
loss: 13.755799
step: 132
parameters:
{ 'fluxonium': { 'ec': 1.5123985834327893,
'ej': 2.805957442609608,
'el': 0.3712124251346635},
'~': { 'bandwidth': 0.06763866637766792,
'bias_phi0': -0.666259280375819,
'bias_phipi': -0.015973442721887467,
'noise': 1.382998679604511}}
gradient:
{ 'fluxonium': { 'ec': 0.1375411437987447,
'ej': -0.3122068956470555,
'el': -0.1458185513211675},
'~': { 'bandwidth': 0.29380094790485484,
'bias_phi0': -0.20607060340393635,
'bias_phipi': -1.1428983834415727,
'noise': -0.15494673707447093}}
loss: 13.755182
step: 133
parameters:
{ 'fluxonium': { 'ec': 1.512179456369073,
'ej': 2.8064052665587242,
'el': 0.37088859453862777},
'~': { 'bandwidth': 0.06717385319033656,
'bias_phi0': -0.6663321682698194,
'bias_phipi': -0.01512996951274296,
'noise': 1.3832466889015944}}
gradient:
{ 'fluxonium': { 'ec': 0.09479294590558685,
'ej': -0.31783647232577733,
'el': -0.30151965275226256},
'~': { 'bandwidth': 0.2912975712408261,
'bias_phi0': -0.22929481820045824,
'bias_phipi': 0.2206273645430901,
'noise': -0.15552661087108674}}
loss: 13.754533
step: 134
parameters:
{ 'fluxonium': { 'ec': 1.5116571790742876,
'ej': 2.8078285075781615,
'el': 0.3709764588049396},
'~': { 'bandwidth': 0.06577915942448538,
'bias_phi0': -0.6660709409021056,
'bias_phipi': -0.016034046590508604,
'noise': 1.3839988309592683}}
gradient:
{ 'fluxonium': { 'ec': 0.14191725151697743,
'ej': -0.30907936713372663,
'el': -0.05699392828240746},
'~': { 'bandwidth': 0.3020944279326902,
'bias_phi0': -0.1523917901370948,
'bias_phipi': -1.175005860916808,
'noise': -0.15802264671507668}}
loss: 13.753847
step: 135
parameters:
{ 'fluxonium': { 'ec': 1.511438761800494,
'ej': 2.808271624610799,
'el': 0.37060741564694466},
'~': { 'bandwidth': 0.06530665875206206,
'bias_phi0': -0.6661709670665765,
'bias_phipi': -0.015157683374293504,
'noise': 1.3842476264844548}}
gradient:
{ 'fluxonium': { 'ec': 0.09089790001983289,
'ej': -0.324286617989895,
'el': -0.33364962704443524},
'~': { 'bandwidth': 0.30137110502110176,
'bias_phi0': -0.2451424397761069,
'bias_phipi': 0.29875745370559065,
'noise': -0.15865958661813628}}
loss: 13.753198
step: 136
parameters:
{ 'fluxonium': { 'ec': 1.511009220852278,
'ej': 2.8094778556240487,
'el': 0.3707036741388417},
'~': { 'bandwidth': 0.06409877701510404,
'bias_phi0': -0.665944773602169,
'bias_phipi': -0.016049055235051336,
'noise': 1.384887997339713}}
gradient:
{ 'fluxonium': { 'ec': 0.13828617931321618,
'ej': -0.3200313476866769,
'el': -0.13965244090461937},
'~': { 'bandwidth': 0.31405124632451,
'bias_phi0': -0.20538313410840914,
'bias_phipi': -1.1927192009928131,
'noise': -0.1609226862953922}}
loss: 13.752600
step: 137
parameters:
{ 'fluxonium': { 'ec': 1.5108145080004312,
'ej': 2.809885540204075,
'el': 0.3704000097219975},
'~': { 'bandwidth': 0.06365711758019062,
'bias_phi0': -0.6660165065064232,
'bias_phipi': -0.01526684221034179,
'noise': 1.385116562830442}}
gradient:
{ 'fluxonium': { 'ec': 0.09296847334634095,
'ej': -0.3272297087641598,
'el': -0.31742282754820594},
'~': { 'bandwidth': 0.31268111768583184,
'bias_phi0': -0.23910351404896707,
'bias_phipi': 0.2270923025216896,
'noise': -0.16152651711762409}}
loss: 13.751971
step: 138
parameters:
{ 'fluxonium': { 'ec': 1.5103561461478812,
'ej': 2.8111854399227187,
'el': 0.37048747872397864},
'~': { 'bandwidth': 0.06232710681556546,
'bias_phi0': -0.665777641023712,
'bias_phipi': -0.016101785853026525,
'noise': 1.3858105838044006}}
gradient:
{ 'fluxonium': { 'ec': 0.1421309312960518,
'ej': -0.31678123435988437,
'el': -0.05171880969681797},
'~': { 'bandwidth': 0.32262037969930857,
'bias_phi0': -0.15256725871511434,
'bias_phipi': -1.2256754521290745,
'noise': -0.16406351054370708}}
loss: 13.751305
step: 139
parameters:
{ 'fluxonium': { 'ec': 1.5101626029415196,
'ej': 2.8115889278702717,
'el': 0.3701437191846301},
'~': { 'bandwidth': 0.06187819528012621,
'bias_phi0': -0.6658731856626549,
'bias_phipi': -0.01529064305783047,
'noise': 1.3860400550830183}}
gradient:
{ 'fluxonium': { 'ec': 0.0884035237492804,
'ej': -0.3336085901280479,
'el': -0.35162051734383853},
'~': { 'bandwidth': 0.3230867142474334,
'bias_phi0': -0.25620175039228943,
'bias_phipi': 0.3065018371726156,
'noise': -0.16472334183992157}}
loss: 13.750677
step: 140
parameters:
{ 'fluxonium': { 'ec': 1.509788611215087,
'ej': 2.812687704084276,
'el': 0.3702405813390325},
'~': { 'bandwidth': 0.060730147749893354,
'bias_phi0': -0.6656647401088804,
'bias_phipi': -0.01611335205836492,
'noise': 1.386629743621276}}
gradient:
{ 'fluxonium': { 'ec': 0.13810825529425702,
'ej': -0.32718484920093943,
'el': -0.13082807973884858},
'~': { 'bandwidth': 0.3346438281876466,
'bias_phi0': -0.20320397251580413,
'bias_phipi': -1.240829917764503,
'noise': -0.1670110367781779}}
loss: 13.750098
step: 141
parameters:
{ 'fluxonium': { 'ec': 1.5096164978556263,
'ej': 2.813058747961404,
'el': 0.36995534634815386},
'~': { 'bandwidth': 0.060310925026715555,
'bias_phi0': -0.6657350231949181,
'bias_phipi': -0.015388520079990652,
'noise': 1.3868406922341627}}
gradient:
{ 'fluxonium': { 'ec': 0.09005376384364949,
'ej': -0.33619421559726226,
'el': -0.334076047918865},
'~': { 'bandwidth': 0.33446939269972015,
'bias_phi0': -0.2495076671730841,
'bias_phipi': 0.23329784166217482,
'noise': -0.1676375647140595}}
loss: 13.749490
step: 142
parameters:
{ 'fluxonium': { 'ec': 1.5092184215921538,
'ej': 2.8142431680169615,
'el': 0.37004205364673365},
'~': { 'bandwidth': 0.059047048920472564,
'bias_phi0': -0.6655159553040295,
'bias_phipi': -0.016159109324766108,
'noise': 1.3874805714284668}}
gradient:
{ 'fluxonium': { 'ec': 0.14135182719958223,
'ej': -0.3238458794144923,
'el': -0.0446983481934663},
'~': { 'bandwidth': 0.3433727715357304,
'bias_phi0': -0.15180426482010168,
'bias_phipi': -1.2747244244898797,
'noise': -0.17020262618657156}}
loss: 13.748847
step: 143
parameters:
{ 'fluxonium': { 'ec': 1.5090478993795202,
'ej': 2.8146104168680663,
'el': 0.36972159397528453},
'~': { 'bandwidth': 0.05862116988728626,
'bias_phi0': -0.6656069591055993,
'bias_phipi': -0.0154089799814772,
'noise': 1.387692477049623}}
gradient:
{ 'fluxonium': { 'ec': 0.08480091816391,
'ej': -0.34245407100519265,
'el': -0.37027593076032894},
'~': { 'bandwidth': 0.34505428694173107,
'bias_phi0': -0.2678353367346216,
'bias_phipi': 0.31334055095049745,
'noise': -0.17088343429156921}}
loss: 13.748240
step: 144
parameters:
{ 'fluxonium': { 'ec': 1.508725716233869,
'ej': 2.815609568436984,
'el': 0.369818596398387},
'~': { 'bandwidth': 0.0575333979547418,
'bias_phi0': -0.6654141489501267,
'bias_phipi': -0.016167699984775637,
'noise': 1.3882353919021106}}
gradient:
{ 'fluxonium': { 'ec': 0.1369491206862436,
'ej': -0.33354418268350794,
'el': -0.1188833652968938},
'~': { 'bandwidth': 0.3552838036321749,
'bias_phi0': -0.1992029643904103,
'bias_phipi': -1.2867054435695178,
'noise': -0.1731846007383271}}
loss: 13.747682
step: 145
parameters:
{ 'fluxonium': { 'ec': 1.5085744445356377,
'ej': 2.8159471965909897,
'el': 0.36955017537799545},
'~': { 'bandwidth': 0.05713601948458422,
'bias_phi0': -0.6654828262775807,
'bias_phipi': -0.01549652235833803,
'noise': 1.38843037364209}}
gradient:
{ 'fluxonium': { 'ec': 0.0859946803585463,
'ej': -0.34464795035508167,
'el': -0.35148322723073644},
'~': { 'bandwidth': 0.356344148194379,
'bias_phi0': -0.26051300508181646,
'bias_phipi': 0.23890634518525034,
'noise': -0.17383193600612123}}
loss: 13.747097
step: 146
parameters:
{ 'fluxonium': { 'ec': 1.5082325247872104,
'ej': 2.817024515138966,
'el': 0.36963589274027203},
'~': { 'bandwidth': 0.05593897254361139,
'bias_phi0': -0.6652812253798788,
'bias_phipi': -0.016207316029840393,
'noise': 1.3890202254628343}}
gradient:
{ 'fluxonium': { 'ec': 0.13952717251761887,
'ej': -0.3301409128049439,
'el': -0.0354244291006689},
'~': { 'bandwidth': 0.36401299483404503,
'bias_phi0': -0.14974065971159867,
'bias_phipi': -1.3215964081631184,
'noise': -0.1764119473792564}}
loss: 13.746476
step: 147
parameters:
{ 'fluxonium': { 'ec': 1.50808322506596,
'ej': 2.817358647798412,
'el': 0.3693368266728926},
'~': { 'bandwidth': 0.05553569310038934,
'bias_phi0': -0.6653677747368387,
'bias_phipi': -0.015514173088321613,
'noise': 1.389216158577458}}
gradient:
{ 'fluxonium': { 'ec': 0.0800470978992972,
'ej': -0.3507320765822644,
'el': -0.38955952096505986},
'~': { 'bandwidth': 0.3669107809074801,
'bias_phi0': -0.28002110426839966,
'bias_phipi': 0.31882555816420066,
'noise': -0.17711114931131922}}
loss: 13.745892
step: 148
parameters:
{ 'fluxonium': { 'ec': 1.507808823193241,
'ej': 2.8182662231817797,
'el': 0.36943358449702346},
'~': { 'bandwidth': 0.054508046660394646,
'bias_phi0': -0.6651887142852382,
'bias_phipi': -0.016213328743609392,
'noise': 1.3897162435183583}}
gradient:
{ 'fluxonium': { 'ec': 0.13475604976231115,
'ej': -0.3389760125470529,
'el': -0.10336575566214345},
'~': { 'bandwidth': 0.3755975794464744,
'bias_phi0': -0.19305386631195143,
'bias_phipi': -1.329734515297278,
'noise': -0.17941469124375}}
loss: 13.745356
step: 149
parameters:
{ 'fluxonium': { 'ec': 1.507676703701492,
'ej': 2.8185734072592212,
'el': 0.36918048714829793},
'~': { 'bandwidth': 0.05413202895644079,
'bias_phi0': -0.6652557223530975,
'bias_phipi': -0.015592275888596917,
'noise': 1.3898967586160145}}
gradient:
{ 'fluxonium': { 'ec': 0.0807497854527297,
'ej': -0.3524990583668409,
'el': -0.36963157904064115},
'~': { 'bandwidth': 0.37790422860333267,
'bias_phi0': -0.27212245675041913,
'bias_phipi': 0.24351391864122757,
'noise': -0.18008031532176758}}
loss: 13.744794
step: 150
parameters:
{ 'fluxonium': { 'ec': 1.507386525834314,
'ej': 2.8195522370533483,
'el': 0.36926507832806366},
'~': { 'bandwidth': 0.053001846162222754,
'bias_phi0': -0.6650694676222425,
'bias_phipi': -0.016247575785935844,
'noise': 1.3904407552017215}}
gradient:
{ 'fluxonium': { 'ec': 0.13661311292469697,
'ej': -0.33551992813325027,
'el': -0.02334937784572677},
'~': { 'bandwidth': 0.3841190976261598,
'bias_phi0': -0.1459885444162441,
'bias_phipi': -1.3656525399649504,
'noise': -0.18266207992209182}}
loss: 13.744198
step: 151
parameters:
{ 'fluxonium': { 'ec': 1.5072567186602424,
'ej': 2.819856123549196,
'el': 0.368985594783042},
'~': { 'bandwidth': 0.052620845963282134,
'bias_phi0': -0.665151745498737,
'bias_phipi': -0.015607615492980774,
'noise': 1.3906221647501464}}
gradient:
{ 'fluxonium': { 'ec': 0.07411477866403493,
'ej': -0.35834043426630013,
'el': -0.4093758949984654},
'~': { 'bandwidth': 0.3882075210604818,
'bias_phi0': -0.2927214802039081,
'bias_phipi': 0.3224216573595598,
'noise': -0.18337641188063086}}
loss: 13.743637
step: 152
parameters:
{ 'fluxonium': { 'ec': 1.50702594174565,
'ej': 2.8206802217219993,
'el': 0.3690817617457143},
'~': { 'bandwidth': 0.05165261595537563,
'bias_phi0': -0.6649847475848131,
'bias_phipi': -0.016251356801308736,
'noise': 1.3910833683266164}}
gradient:
{ 'fluxonium': { 'ec': 0.131484431733093,
'ej': -0.3433385976897386,
'el': -0.0838466039430329},
'~': { 'bandwidth': 0.39512777370315133,
'bias_phi0': -0.18444467544508036,
'bias_phipi': -1.3692565730680504,
'noise': -0.18567150593772835}}
loss: 13.743124
step: 153
parameters:
{ 'fluxonium': { 'ec': 1.5069113656805528,
'ej': 2.820959691284781,
'el': 0.36884262504510873},
'~': { 'bandwidth': 0.05129757698612252,
'bias_phi0': -0.6650500815221709,
'bias_phipi': -0.015677121758204342,
'noise': 1.391250785121941}}
gradient:
{ 'fluxonium': { 'ec': 0.07429389540638609,
'ej': -0.3596460061883267,
'el': -0.38848343633951343},
'~': { 'bandwidth': 0.3986618990572156,
'bias_phi0': -0.2843322085779033,
'bias_phipi': 0.24662235116178025,
'noise': -0.1863522605207387}}
loss: 13.742586
step: 154
parameters:
{ 'fluxonium': { 'ec': 1.5066683989141814,
'ej': 2.8218486995308023,
'el': 0.36892600183844326},
'~': { 'bandwidth': 0.05023366856729073,
'bias_phi0': -0.6648772393329181,
'bias_phipi': -0.016280945501687183,
'noise': 1.3917531202201066}}
gradient:
{ 'fluxonium': { 'ec': 0.1325772633197837,
'ej': -0.339823895604368,
'el': -0.007893234368332558},
'~': { 'bandwidth': 0.4031837898376111,
'bias_phi0': -0.1401397497469714,
'bias_phipi': -1.4061911545274681,
'noise': -0.18892278893145353}}
loss: 13.742016
step: 155
parameters:
{ 'fluxonium': { 'ec': 1.5065564334491213,
'ej': 2.82212497244232,
'el': 0.368664394411782},
'~': { 'bandwidth': 0.04987472381196649,
'bias_phi0': -0.6649554895982427,
'bias_phipi': -0.01569061153460353,
'noise': 1.3919213290947583}}
gradient:
{ 'fluxonium': { 'ec': 0.06699484352677976,
'ej': -0.3651673518448701,
'el': -0.42959589964859524},
'~': { 'bandwidth': 0.4084097353061758,
'bias_phi0': -0.30588683508790854,
'bias_phipi': 0.32350148986434435,
'noise': -0.18964831452898867}}
loss: 13.741480
step: 156
parameters:
{ 'fluxonium': { 'ec': 1.5063651353048073,
'ej': 2.8228736093984272,
'el': 0.36875963621561153},
'~': { 'bandwidth': 0.04896467411826597,
'bias_phi0': -0.6647990400818892,
'bias_phipi': -0.016282801976361977,
'noise': 1.3923475815243431}}
gradient:
{ 'fluxonium': { 'ec': 0.12710015761005788,
'ej': -0.34648441161798843,
'el': -0.05993846607605435},
'~': { 'bandwidth': 0.4133337978016482,
'bias_phi0': -0.17308969411085484,
'bias_phipi': -1.4045880762734864,
'noise': -0.19192467566568777}}
loss: 13.740990
step: 157
parameters:
{ 'fluxonium': { 'ec': 1.506266583330112,
'ej': 2.8231278652648455,
'el': 0.3685332217370634},
'~': { 'bandwidth': 0.048630320849806,
'bias_phi0': -0.6648627296619043,
'bias_phipi': -0.015752313666861868,
'noise': 1.3925031521743054}}
gradient:
{ 'fluxonium': { 'ec': 0.06662079832804624,
'ej': -0.36597941597592537,
'el': -0.40798085006434204},
'~': { 'bandwidth': 0.41804512374453917,
'bias_phi0': -0.2971351935660051,
'bias_phipi': 0.24762814786799678,
'noise': -0.1926167726404782}}
loss: 13.740477
step: 158
parameters:
{ 'fluxonium': { 'ec': 1.506066327786235,
'ej': 2.8239356339884196,
'el': 0.3686153067756277},
'~': { 'bandwidth': 0.047631501315357004,
'bias_phi0': -0.6647015354423541,
'bias_phipi': -0.016308375923299572,
'noise': 1.3929680159106517}}
gradient:
{ 'fluxonium': { 'ec': 0.12740011499113463,
'ej': -0.3428854359939725,
'el': 0.011522500769574173},
'~': { 'bandwidth': 0.42061910971243893,
'bias_phi0': -0.13178778617879883,
'bias_phipi': -1.4424658189779738,
'noise': -0.19516360854330828}}
loss: 13.739935
step: 159
parameters:
{ 'fluxonium': { 'ec': 1.5059706388289658,
'ej': 2.8241867098242235,
'el': 0.36836997938838384},
'~': { 'bandwidth': 0.047294457325203466,
'bias_phi0': -0.664776035064073,
'bias_phipi': -0.01576437066193468,
'noise': 1.3931242395566397}}
gradient:
{ 'fluxonium': { 'ec': 0.05869787275977889,
'ej': -0.3710944338661817,
'el': -0.45007262742561577},
'~': { 'bandwidth': 0.42690253768877995,
'bias_phi0': -0.31946474865938673,
'bias_phipi': 0.32135762062007067,
'noise': -0.19589576997349706}}
loss: 13.739423
step: 160
parameters:
{ 'fluxonium': { 'ec': 1.5058148063822685,
'ej': 2.8248677049629105,
'el': 0.3684639562854457},
'~': { 'bandwidth': 0.046440872717755384,
'bias_phi0': -0.6646287711563941,
'bias_phipi': -0.016308585601525868,
'noise': 1.3935194310191592}}
gradient:
{ 'fluxonium': { 'ec': 0.12158109341844492,
'ej': -0.3482651606618996,
'el': -0.031332793292943584},
'~': { 'bandwidth': 0.4295993316634344,
'bias_phi0': -0.15875434294846946,
'bias_phipi': -1.4350496462467448,
'noise': -0.19814389067530946}}
loss: 13.738958
step: 161
parameters:
{ 'fluxonium': { 'ec': 1.5057308532403266,
'ej': 2.8250990392647197,
'el': 0.36824914484727506},
'~': { 'bandwidth': 0.046126977257186376,
'bias_phi0': -0.664690862720166,
'bias_phipi': -0.01581901169864532,
'noise': 1.3936643085418472}}
gradient:
{ 'fluxonium': { 'ec': 0.057744845270728096,
'ej': -0.37138533325698597,
'el': -0.4280611478017982},
'~': { 'bandwidth': 0.4354066654778207,
'bias_phi0': -0.3105303116044353,
'bias_phipi': 0.24583123628968065,
'noise': -0.19884296451160893}}
loss: 13.738472
step: 162
parameters:
{ 'fluxonium': { 'ec': 1.5055689697195365,
'ej': 2.82583394584559,
'el': 0.36832984133261004},
'~': { 'bandwidth': 0.045191513606831914,
'bias_phi0': -0.6645397075518505,
'bias_phipi': -0.016330716693257166,
'noise': 1.3940958640192398}}
gradient:
{ 'fluxonium': { 'ec': 0.12107519298247205,
'ej': -0.34453636533084153,
'el': 0.03540999429937364},
'~': { 'bandwidth': 0.4357683754437036,
'bias_phi0': -0.1205694059463418,
'bias_phipi': -1.4737139047982473,
'noise': -0.20135448448474796}}
loss: 13.737957
step: 163
parameters:
{ 'fluxonium': { 'ec': 1.5054880815565805,
'ej': 2.8260620524476106,
'el': 0.368099313154179},
'~': { 'bandwidth': 0.04487624538639054,
'bias_phi0': -0.6646107430485946,
'bias_phipi': -0.01583000052702393,
'noise': 1.3942412305711414}}
gradient:
{ 'fluxonium': { 'ec': 0.04925459081831596,
'ej': -0.37600065168672475,
'el': -0.47066404712872767},
'~': { 'bandwidth': 0.44300393162524515,
'bias_phi0': -0.3334122080389529,
'bias_phipi': 0.31523299537324345,
'noise': -0.20208820679043515}}
loss: 13.737472
step: 164
parameters:
{ 'fluxonium': { 'ec': 1.505363939790935,
'ej': 2.82668293472255,
'el': 0.3681916669237777},
'~': { 'bandwidth': 0.04407699824123299,
'bias_phi0': -0.664471435760469,
'bias_phipi': -0.01632953557198243,
'noise': 1.3946091929642228}}
gradient:
{ 'fluxonium': { 'ec': 0.11491742652031023,
'ej': -0.3485395048850146,
'el': 0.0021374421915842934},
'~': { 'bandwidth': 0.44324716313315865,
'bias_phi0': -0.14129567957498068,
'bias_phipi': -1.4600019156921977,
'noise': -0.20429954218280824}}
loss: 13.737031
step: 165
parameters:
{ 'fluxonium': { 'ec': 1.5052932562146975,
'ej': 2.8268934579871248,
'el': 0.36798745301926966},
'~': { 'bandwidth': 0.043783361624725146,
'bias_phi0': -0.6645319770473664,
'bias_phipi': -0.01587827518872532,
'noise': 1.3947444509178784}}
gradient:
{ 'fluxonium': { 'ec': 0.047701281062557555,
'ej': -0.3757494058216267,
'el': -0.44867962017612334},
'~': { 'bandwidth': 0.4500403320101879,
'bias_phi0': -0.32453475524672676,
'bias_phipi': 0.24046342597709375,
'noise': -0.20500075561734057}}
loss: 13.736572
step: 166
parameters:
{ 'fluxonium': { 'ec': 1.5051656774723485,
'ej': 2.8275635743983414,
'el': 0.36806661993282325},
'~': { 'bandwidth': 0.0429090465783798,
'bias_phi0': -0.6643893977731671,
'bias_phipi': -0.01634872261847131,
'noise': 1.3951468140112446}}
gradient:
{ 'fluxonium': { 'ec': 0.11360805833954168,
'ej': -0.34461810831037376,
'el': 0.06412242832393134},
'~': { 'bandwidth': 0.44792534365986925,
'bias_phi0': -0.10622381483973098,
'bias_phipi': -1.499201361487514,
'noise': -0.2074664010224607}}
loss: 13.736086
step: 167
parameters:
{ 'fluxonium': { 'ec': 1.5050982069988859,
'ej': 2.8277707824284883,
'el': 0.3678495309681483},
'~': { 'bandwidth': 0.04261541054426764,
'bias_phi0': -0.6644572439831209,
'bias_phipi': -0.015888501409807916,
'noise': 1.3952823860646233}}
gradient:
{ 'fluxonium': { 'ec': 0.03871516575512268,
'ej': -0.37976663039134,
'el': -0.49125764006853523},
'~': { 'bandwidth': 0.45598476983060643,
'bias_phi0': -0.34770777210575765,
'bias_phipi': 0.30436888950033025,
'noise': -0.2081962499568834}}
loss: 13.735628
step: 168
parameters:
{ 'fluxonium': { 'ec': 1.5050023048308436,
'ej': 2.828338718051889,
'el': 0.3679398732645923},
'~': { 'bandwidth': 0.04186804557177516,
'bias_phi0': -0.6643247839723981,
'bias_phipi': -0.016346390107294627,
'noise': 1.3956268817206599}}
gradient:
{ 'fluxonium': { 'ec': 0.10711097672074132,
'ej': -0.3471827103730204,
'el': 0.0404166838823099},
'~': { 'bandwidth': 0.45356099269396427,
'bias_phi0': -0.12071446028745525,
'bias_phipi': -1.4788903391802593,
'noise': -0.21036332471353758}}
loss: 13.735213
step: 169
parameters:
{ 'fluxonium': { 'ec': 1.5049436588444538,
'ej': 2.828530391746507,
'el': 0.36774536033321004},
'~': { 'bandwidth': 0.04159445178889841,
'bias_phi0': -0.6643838102263532,
'bias_phipi': -0.015931057046051897,
'noise': 1.3957535369557799}}
gradient:
{ 'fluxonium': { 'ec': 0.03654528211652186,
'ej': -0.37896124861179314,
'el': -0.4698344511813277},
'~': { 'bandwidth': 0.46120390827735924,
'bias_phi0': -0.33919634708554663,
'bias_phipi': 0.23073539776617286,
'noise': -0.21106153011996076}}
loss: 13.734781
step: 170
parameters:
{ 'fluxonium': { 'ec': 1.504846681268339,
'ej': 2.829143404710651,
'el': 0.36782279202422613},
'~': { 'bandwidth': 0.040778701770863485,
'bias_phi0': -0.6642484811504665,
'bias_phipi': -0.016363061166980095,
'noise': 1.3961307631272846}}
gradient:
{ 'fluxonium': { 'ec': 0.1050144498504133,
'ej': -0.3429937007853354,
'el': 0.09774550509658797},
'~': { 'bandwidth': 0.4563596587418302,
'bias_phi0': -0.08866195478836136,
'bias_phipi': -1.518281096482582,
'noise': -0.21347193652745758}}
loss: 13.734325
step: 171
parameters:
{ 'fluxonium': { 'ec': 1.504791342233594,
'ej': 2.829331660901741,
'el': 0.3676179090887196},
'~': { 'bandwidth': 0.04050648391513434,
'bias_phi0': -0.6643133816511527,
'bias_phipi': -0.0159407632059235,
'noise': 1.396257561131188}}
gradient:
{ 'fluxonium': { 'ec': 0.027147431814239065,
'ej': -0.382278473623175,
'el': -0.5117920043997864},
'~': { 'bandwidth': 0.46509478417573097,
'bias_phi0': -0.3623606703439981,
'bias_phipi': 0.2880672343154054,
'noise': -0.21419232233644864}}
loss: 13.733895
step: 172
parameters:
{ 'fluxonium': { 'ec': 1.5047206204574899,
'ej': 2.82985340200452,
'el': 0.36770581042293254},
'~': { 'bandwidth': 0.03980832130628222,
'bias_phi0': -0.6641867669008642,
'bias_phipi': -0.016359802258795155,
'noise': 1.3965822809359636}}
gradient:
{ 'fluxonium': { 'ec': 0.09817386266034911,
'ej': -0.3440965286253187,
'el': 0.08314316647510733},
'~': { 'bandwidth': 0.4598129433282609,
'bias_phi0': -0.0972084996043685,
'bias_phipi': -1.4912922194368028,
'noise': -0.2163087293706038}}
loss: 13.733506
step: 173
parameters:
{ 'fluxonium': { 'ec': 1.5046728802194878,
'ej': 2.8300280745777697,
'el': 0.3675202063352702},
'~': { 'bandwidth': 0.03955448623129791,
'bias_phi0': -0.6642442878532433,
'bias_phipi': -0.01597820080565004,
'noise': 1.3967013198288165}}
gradient:
{ 'fluxonium': { 'ec': 0.02434986321473165,
'ej': -0.3809181380019216,
'el': -0.4915884482243501},
'~': { 'bandwidth': 0.4681475044794082,
'bias_phi0': -0.35460262710281915,
'bias_phipi': 0.21589856999860763,
'noise': -0.2169986802748482}}
loss: 13.733101
step: 174
parameters:
{ 'fluxonium': { 'ec': 1.5046032368089675,
'ej': 2.8305912269196454,
'el': 0.3675956166785377},
'~': { 'bandwidth': 0.03879446361844963,
'bias_phi0': -0.6641150117315188,
'bias_phipi': -0.016374320235658716,
'noise': 1.3970574010512573}}
gradient:
{ 'fluxonium': { 'ec': 0.09531820323671047,
'ej': -0.3395591458674023,
'el': 0.13599489241745188},
'~': { 'bandwidth': 0.4603469462107674,
'bias_phi0': -0.06803185572402959,
'bias_phipi': -1.5304548458719693,
'noise': -0.21934566718039422}}
loss: 13.732676
step: 175
parameters:
{ 'fluxonium': { 'ec': 1.5045588466633462,
'ej': 2.830762387268464,
'el': 0.3674018377681874},
'~': { 'bandwidth': 0.03854333007922282,
'bias_phi0': -0.6641771613739701,
'bias_phipi': -0.015987565430181157,
'noise': 1.3971764287318789}}
gradient:
{ 'fluxonium': { 'ec': 0.01463430584873171,
'ej': -0.38343038348894976,
'el': -0.5322713280847626},
'~': { 'bandwidth': 0.4695931346852132,
'bias_phi0': -0.37741454275727926,
'bias_phipi': 0.26576147836064,
'noise': -0.2200510798691804}}
loss: 13.732274
step: 176
parameters:
{ 'fluxonium': { 'ec': 1.5045106906599912,
'ej': 2.8312442388067813,
'el': 0.36748681835924574},
'~': { 'bandwidth': 0.03789158854920438,
'bias_phi0': -0.6640554844529157,
'bias_phipi': -0.0163703448117502,
'noise': 1.3974850010168567}}
gradient:
{ 'fluxonium': { 'ec': 0.08812728800296343,
'ej': -0.33921691011576727,
'el': 0.1295859791438979},
'~': { 'bandwidth': 0.4612949894195879,
'bias_phi0': -0.07121235244116342,
'bias_phipi': -1.4969552658708838,
'noise': -0.2221113349669071}}
loss: 13.731911
step: 177
parameters:
{ 'fluxonium': { 'ec': 1.5044728308293236,
'ej': 2.8314036836554113,
'el': 0.36730942896422153},
'~': { 'bandwidth': 0.03765710941369633,
'bias_phi0': -0.6641114727309655,
'bias_phipi': -0.016020441116371225,
'noise': 1.3975974100903383}}
gradient:
{ 'fluxonium': { 'ec': 0.011203109817598422,
'ej': -0.3815272760689076,
'el': -0.5140830507368668},
'~': { 'bandwidth': 0.47014561868907806,
'bias_phi0': -0.37088422193220805,
'bias_phipi': 0.19531400451062042,
'noise': -0.22278793443529737}}
loss: 13.731534
step: 178
parameters:
{ 'fluxonium': { 'ec': 1.5043942368176526,
'ej': 2.832066654501454,
'el': 0.36720713699921287},
'~': { 'bandwidth': 0.03673517614155026,
'bias_phi0': -0.6640448285502523,
'bias_phipi': -0.016038974146882212,
'noise': 1.3980389054140803}}
gradient:
{ 'fluxonium': { 'ec': 0.004265167185135033,
'ej': -0.3802547846688832,
'el': -0.5142142252681539},
'~': { 'bandwidth': 0.4687849499868383,
'bias_phi0': -0.3716436447887633,
'bias_phipi': 0.19418056908826342,
'noise': -0.2256984675922894}}
loss: 13.730773
step: 179
parameters:
{ 'fluxonium': { 'ec': 1.504079860770969,
'ej': 2.8347185378856254,
'el': 0.36679796913917834},
'~': { 'bandwidth': 0.033047443052965975,
'bias_phi0': -0.6637782518273991,
'bias_phipi': -0.016113106268926165,
'noise': 1.3998048867090482}}
gradient:
{ 'fluxonium': { 'ec': -0.03040566961271285,
'ej': -0.3714998118636541,
'el': -0.5375630169049905},
'~': { 'bandwidth': 0.4411816627396959,
'bias_phi0': -0.3896674880638381,
'bias_phipi': 0.1691733195770856,
'noise': -0.23806039990980038}}
loss: 13.727778
step: 180
parameters:
{ 'fluxonium': { 'ec': 1.5028223565842338,
'ej': 2.8453260714223108,
'el': 0.3651612976990401},
'~': { 'bandwidth': 0.01829651069862885,
'bias_phi0': -0.6627119449359868,
'bias_phipi': -0.016409634757101967,
'noise': 1.40686881188892}}
gradient:
{ 'fluxonium': { 'ec': -0.41114465197668393,
'ej': -0.22130391015526826,
'el': -1.7939670234588245},
'~': { 'bandwidth': -1.2964810491318968,
'bias_phi0': -1.1806665907982077,
'bias_phipi': -0.3995071214581247,
'noise': -0.30417670690162046}}
loss: 13.724115
step: 181
parameters:
{ 'fluxonium': { 'ec': 1.503566737029968,
'ej': 2.839046934839333,
'el': 0.36613012645442844},
'~': { 'bandwidth': 0.027028334987359282,
'bias_phi0': -0.6633431460146724,
'bias_phipi': -0.016234104519883254,
'noise': 1.4026873166466045}}
gradient:
{ 'fluxonium': { 'ec': -0.12184162717224845,
'ej': -0.33954030454945683,
'el': -0.720063973211716},
'~': { 'bandwidth': 0.23800103062868155,
'bias_phi0': -0.5113875243734665,
'bias_phipi': 0.03272814626618592,
'noise': -0.2611923567340276}}
loss: 13.723562
step: 182
parameters:
{ 'fluxonium': { 'ec': 1.5193283838766385,
'ej': 2.8582421396583553,
'el': 0.36049328089700566},
'~': { 'bandwidth': 0.02125843921196568,
'bias_phi0': -0.6579049058204636,
'bias_phipi': -0.01628028066493575,
'noise': 1.4316644380377241}}
gradient:
{ 'fluxonium': { 'ec': -0.2739942345931605,
'ej': 0.02099157211069272,
'el': -1.8871618284908882},
'~': { 'bandwidth': -0.18128683025893794,
'bias_phi0': -0.5754552314282566,
'bias_phipi': -0.16412053998398002,
'noise': -0.273647269410656}}
loss: 13.712449
step: 183
parameters:
{ 'fluxonium': { 'ec': 1.5197951507848613,
'ej': 2.857847891586402,
'el': 0.3610412763512632},
'~': { 'bandwidth': 0.02166363934764193,
'bias_phi0': -0.6586595713379394,
'bias_phipi': -0.01621794542200411,
'noise': 1.432288831370703}}
gradient:
{ 'fluxonium': { 'ec': -0.09930455279862394,
'ej': 0.31395737371380317,
'el': 0.07654950187154458},
'~': { 'bandwidth': -0.062048087239569116,
'bias_phi0': -0.3236798277071682,
'bias_phipi': 0.06460206393483436,
'noise': -0.2713199981332566}}
loss: 13.711929
step: 184
parameters:
{ 'fluxonium': { 'ec': 1.5208001356897158,
'ej': 2.8575757576040592,
'el': 0.36098923043467934},
'~': { 'bandwidth': 0.021373154733320326,
'bias_phi0': -0.6586070257321878,
'bias_phipi': -0.0161863594389979,
'noise': 1.4354730882546332}}
gradient:
{ 'fluxonium': { 'ec': -0.09893366167629514,
'ej': 0.31352375759895945,
'el': 0.07613166009031697},
'~': { 'bandwidth': -0.06290342061996304,
'bias_phi0': -0.32398883569499015,
'bias_phipi': 0.06295948942163732,
'noise': -0.2712706101823694}}
loss: 13.710879
step: 185
parameters:
{ 'fluxonium': { 'ec': 1.524820075309134,
'ej': 2.856487221674689,
'el': 0.36078104676834377},
'~': { 'bandwidth': 0.020211216276033905,
'bias_phi0': -0.6583968433091815,
'bias_phipi': -0.01606001550697306,
'noise': 1.4482101157903544}}
gradient:
{ 'fluxonium': { 'ec': -0.09020286611238748,
'ej': 0.30372467647000834,
'el': 0.06380444435968252},
'~': { 'bandwidth': -0.08775638167482556,
'bias_phi0': -0.33389085449600353,
'bias_phipi': 0.022329620979764098,
'noise': -0.2711811538172828}}
loss: 13.706709
step: 186
parameters:
{ 'fluxonium': { 'ec': 1.540899833786807,
'ej': 2.852133077957206,
'el': 0.3599483121030015},
'~': { 'bandwidth': 0.015563462446888224,
'bias_phi0': -0.6575561136171559,
'bias_phipi': -0.015554639778873702,
'noise': 1.4991582259332388}}
gradient:
{ 'fluxonium': { 'ec': 0.032941139802496355,
'ej': 0.09350758303121323,
'el': -0.5154523067928254},
'~': { 'bandwidth': -0.9044724453737001,
'bias_phi0': -0.6320216660040031,
'bias_phipi': -0.6732390630642698,
'noise': -0.2730495169508651}}
loss: 13.692610
step: 187
parameters:
{ 'fluxonium': { 'ec': 1.5408356692270888,
'ej': 2.851855932810935,
'el': 0.35978262978266007},
'~': { 'bandwidth': 0.017263803387383973,
'bias_phi0': -0.6571756029612911,
'bias_phipi': -0.015581523227326782,
'noise': 1.4996977712540094}}
gradient:
{ 'fluxonium': { 'ec': -0.015574872282501762,
'ej': -0.03691598582832084,
'el': -0.262119725871619},
'~': { 'bandwidth': -0.2054399978386049,
'bias_phi0': 0.26577438349300975,
'bias_phipi': -0.17791292225092858,
'noise': -0.26276801566956903}}
loss: 13.691571
step: 188
parameters:
{ 'fluxonium': { 'ec': 1.5409239282445961,
'ej': 2.851792249865526,
'el': 0.3597895465682863},
'~': { 'bandwidth': 0.017128180730849398,
'bias_phi0': -0.657186433871079,
'bias_phipi': -0.015576173724517667,
'noise': 1.5077723673397265}}
gradient:
{ 'fluxonium': { 'ec': -0.01537611958502394,
'ej': -0.0364954819140178,
'el': -0.2591563367266997},
'~': { 'bandwidth': -0.20368333368185818,
'bias_phi0': 0.2624582589778547,
'bias_phipi': -0.17601587628751802,
'noise': -0.25969352398846823}}
loss: 13.689485
step: 189
parameters:
{ 'fluxonium': { 'ec': 1.541276964314625,
'ej': 2.8515375180838896,
'el': 0.35981721371079134},
'~': { 'bandwidth': 0.016585690104711105,
'bias_phi0': -0.6572297575102309,
'bias_phipi': -0.015554775713281208,
'noise': 1.5400707516825956}}
gradient:
{ 'fluxonium': { 'ec': -0.014403394765908129,
'ej': -0.035497104540369195,
'el': -0.25424835760731324},
'~': { 'bandwidth': -0.210690070461334,
'bias_phi0': 0.24295309361009043,
'bias_phipi': -0.17455362760801718,
'noise': -0.247934516963561}}
loss: 13.681383
step: 190
parameters:
{ 'fluxonium': { 'ec': 1.5426891085947407,
'ej': 2.8505185909573436,
'el': 0.35992788228081135},
'~': { 'bandwidth': 0.01441572760015792,
'bias_phi0': -0.6574030520668384,
'bias_phipi': -0.015469183668335372,
'noise': 1.6692642890540712}}
gradient:
{ 'fluxonium': { 'ec': -0.00889359392895095,
'ej': -0.04504279289255761,
'el': -0.38120331143133457},
'~': { 'bandwidth': -0.5197760042168779,
'bias_phi0': 0.0391908604381519,
'bias_phipi': -0.2906264803079446,
'noise': -0.20844360558698583}}
loss: 13.652667
step: 191
parameters:
{ 'fluxonium': { 'ec': 1.5426206686283133,
'ej': 2.850453119257902,
'el': 0.35997466978601567},
'~': { 'bandwidth': 0.015467769547600678,
'bias_phi0': -0.6574549609836005,
'bias_phipi': -0.015469135892658664,
'noise': 1.669909880076533}}
gradient:
{ 'fluxonium': { 'ec': 0.017870509253060662,
'ej': -0.01929867639474278,
'el': -0.09642112529237716},
'~': { 'bandwidth': 0.05023307240889504,
'bias_phi0': 0.0772050016387813,
'bias_phipi': -0.04183366035705616,
'noise': -0.2027169388105016}}
loss: 13.652288
step: 192
parameters:
{ 'fluxonium': { 'ec': 1.5426440314202627,
'ej': 2.850438599134812,
'el': 0.3599757298336853},
'~': { 'bandwidth': 0.015424830186122215,
'bias_phi0': -0.6574567977965146,
'bias_phipi': -0.015467651830450194,
'noise': 1.6736713418812486}}
gradient:
{ 'fluxonium': { 'ec': 0.017767081211151226,
'ej': -0.019220976424235398,
'el': -0.09619541055093471},
'~': { 'bandwidth': 0.04985731196215597,
'bias_phi0': 0.07660301598676789,
'bias_phipi': -0.04175920527447019,
'noise': -0.20162662724439923}}
loss: 13.651526
step: 193
parameters:
{ 'fluxonium': { 'ec': 1.5427374825880609,
'ej': 2.8503805186424507,
'el': 0.35997997002436377},
'~': { 'bandwidth': 0.01525307274020837,
'bias_phi0': -0.657464145048171,
'bias_phipi': -0.015461715581616312,
'noise': 1.6887171891001103}}
gradient:
{ 'fluxonium': { 'ec': 0.01734922803877814,
'ej': -0.01899947317384304,
'el': -0.09625986098196977},
'~': { 'bandwidth': 0.04623539923810217,
'bias_phi0': 0.07347543904715081,
'bias_phipi': -0.042256357499525166,
'noise': -0.19734682839289736}}
loss: 13.648518
step: 194
parameters:
{ 'fluxonium': { 'ec': 1.5431112872592532,
'ej': 2.8501481966730062,
'el': 0.35999693078707773},
'~': { 'bandwidth': 0.014566042956552987,
'bias_phi0': -0.6574935340547966,
'bias_phipi': -0.015437970586280787,
'noise': 1.748900577975557}}
gradient:
{ 'fluxonium': { 'ec': 0.015552821491093827,
'ej': -0.019638098384752944,
'el': -0.11328380872044119},
'~': { 'bandwidth': -0.004366261286288058,
'bias_phi0': 0.04860283697874168,
'bias_phipi': -0.05785192121010807,
'noise': -0.18145477621776965}}
loss: 13.637117
step: 195
parameters:
{ 'fluxonium': { 'ec': 1.543968058327296,
'ej': 2.849637933866441,
'el': 0.3600318760443153},
'~': { 'bandwidth': 0.013052780929910189,
'bias_phi0': -0.6575533858243008,
'bias_phipi': -0.015381789672125208,
'noise': 1.9179025394987856}}
gradient:
{ 'fluxonium': { 'ec': 0.01084718619965308,
'ej': -0.021404948542141783,
'el': -0.1602427426740659},
'~': { 'bandwidth': -0.18948642023953818,
'bias_phi0': -0.017762464021618518,
'bias_phipi': -0.10441118180859044,
'noise': -0.14369568286058051}}
loss: 13.609918
step: 196
parameters:
{ 'fluxonium': { 'ec': 1.5454404480354844,
'ej': 2.8488976997639317,
'el': 0.3600640805524548},
'~': { 'bandwidth': 0.01088982833575259,
'bias_phi0': -0.6576143800278926,
'bias_phipi': -0.015285139937953246,
'noise': 2.3032306209930864}}
gradient:
{ 'fluxonium': { 'ec': 0.0012441748913638584,
'ej': -0.02287218955579376,
'el': -0.23697143023675135},
'~': { 'bandwidth': -0.7196905689917878,
'bias_phi0': -0.1297165449101012,
'bias_phipi': -0.18984179001903367,
'noise': -0.0854245200479336}}
loss: 13.567711
step: 197
parameters:
{ 'fluxonium': { 'ec': 1.5454356779887681,
'ej': 2.848899964613658,
'el': 0.3600728161288538},
'~': { 'bandwidth': 0.011448518698760237,
'bias_phi0': -0.6576237732564436,
'bias_phipi': -0.015290461651827172,
'noise': 2.3033034452753363}}
gradient:
{ 'fluxonium': { 'ec': 0.019283869780724494,
'ej': -0.004050827916451616,
'el': -0.0027742337177854015},
'~': { 'bandwidth': -0.048599543947287514,
'bias_phi0': -0.03925524730797303,
'bias_phipi': -0.02135077642475469,
'noise': -0.08327891719630191}}
loss: 13.567496
step: 198
parameters:
{ 'fluxonium': { 'ec': 1.5454519570344134,
'ej': 2.8488950458135998,
'el': 0.36007234610152156},
'~': { 'bandwidth': 0.011430650853193272,
'bias_phi0': -0.6576234353003024,
'bias_phipi': -0.015289519624303267,
'noise': 2.308537793529924}}
gradient:
{ 'fluxonium': { 'ec': 0.019143832822788864,
'ej': -0.00401779623578738,
'el': -0.0027176609358605386},
'~': { 'bandwidth': -0.04830616056093107,
'bias_phi0': -0.03894695545739024,
'bias_phipi': -0.021183465180091954,
'noise': -0.08267238049601602}}
loss: 13.567062
step: 199
parameters:
{ 'fluxonium': { 'ec': 1.545517073216995,
'ej': 2.848875370613366,
'el': 0.3600704659921927},
'~': { 'bandwidth': 0.011359179470925412,
'bias_phi0': -0.6576220834757379,
'bias_phipi': -0.015285751514207645,
'noise': 2.329475186548274}}
gradient:
{ 'fluxonium': { 'ec': 0.018571511377742045,
'ej': -0.00391926961160266,
'el': -0.002886517877123268},
'~': { 'bandwidth': -0.048384079291454836,
'bias_phi0': -0.03796377814047869,
'bias_phipi': -0.020783897328166212,
'noise': -0.08029369430575167}}
loss: 13.565361
step: 200
parameters:
{ 'fluxonium': { 'ec': 1.5457775379473206,
'ej': 2.8487966698124305,
'el': 0.3600629455548773},
'~': { 'bandwidth': 0.011073293941853973,
'bias_phi0': -0.6576166761774797,
'bias_phipi': -0.015270679073825157,
'noise': 2.4132247586216744}}
gradient:
{ 'fluxonium': { 'ec': 0.016073018040375864,
'ej': -0.004071617693979318,
'el': -0.01002429875961161},
'~': { 'bandwidth': -0.06888928818292968,
'bias_phi0': -0.0380992733884824,
'bias_phipi': -0.023576065952831016,
'noise': -0.07149097705980223}}
loss: 13.559033
step: 201
parameters:
{ 'fluxonium': { 'ec': 1.54650211890643,
'ej': 2.8485910409539255,
'el': 0.36003947966040634},
'~': { 'bandwidth': 0.01036242135930352,
'bias_phi0': -0.6575987653990626,
'bias_phipi': -0.015229989455060745,
'noise': 2.653172504662813}}
gradient:
{ 'fluxonium': { 'ec': 0.008951150082542991,
'ej': -0.00713181758354417,
'el': -0.058118060571148045},
'~': { 'bandwidth': -0.16001166259423624,
'bias_phi0': -0.0570271235695885,
'bias_phipi': -0.04551998543195035,
'noise': -0.05112729547479479}}
loss: 13.544537
step: 202
parameters:
{ 'fluxonium': { 'ec': 1.5464933108427255,
'ej': 2.848592814445074,
'el': 0.360034291371048},
'~': { 'bandwidth': 0.010489092628848807,
'bias_phi0': -0.6575867119636739,
'bias_phipi': -0.015233805604498345,
'noise': 2.653217603308459}}
gradient:
{ 'fluxonium': { 'ec': 0.010135482753314662,
'ej': -0.008562831236983731,
'el': 0.0007238449132592195},
'~': { 'bandwidth': 0.014106243940165821,
'bias_phi0': 0.007588034939196797,
'bias_phipi': -0.0161196323476942,
'noise': -0.050717835760203576}}
loss: 13.544526
step: 203
parameters:
{ 'fluxonium': { 'ec': 1.5464946446509424,
'ej': 2.8485924792312654,
'el': 0.3600342455880133},
'~': { 'bandwidth': 0.01048797159482479,
'bias_phi0': -0.6575866779884556,
'bias_phipi': -0.015233732491283559,
'noise': 2.653679267219693}}
gradient:
{ 'fluxonium': { 'ec': 0.01012875386283607,
'ej': -0.008557159704884243,
'el': 0.00072325752829136},
'~': { 'bandwidth': 0.014096557340150603,
'bias_phi0': 0.007582937201840112,
'bias_phipi': -0.01610896004064899,
'noise': -0.05068420079372089}}
loss: 13.544502
step: 204
parameters:
{ 'fluxonium': { 'ec': 1.5464999798838104,
'ej': 2.848591138376031,
'el': 0.3600340624558745},
'~': { 'bandwidth': 0.010483487458728727,
'bias_phi0': -0.6575865420875823,
'bias_phipi': -0.015233440038424417,
'noise': 2.6555259228646295}}
gradient:
{ 'fluxonium': { 'ec': 0.010101771711739094,
'ej': -0.008534623950712306,
'el': 0.0007190291637079738},
'~': { 'bandwidth': 0.014051219727612335,
'bias_phi0': 0.007561338123599715,
'bias_phipi': -0.016067430395549476,
'noise': -0.050549873262740394}}
loss: 13.544409
step: 205
parameters:
{ 'fluxonium': { 'ec': 1.5465213208152822,
'ej': 2.8485857749550934,
'el': 0.36003332992731935},
'~': { 'bandwidth': 0.010465550914344467,
'bias_phi0': -0.6575859984840888,
'bias_phipi': -0.015232270226987848,
'noise': 2.662912545444375}}
gradient:
{ 'fluxonium': { 'ec': 0.009992773874305971,
'ej': -0.008446888023943805,
'el': 0.000672031744186341},
'~': { 'bandwidth': 0.013764412127344989,
'bias_phi0': 0.007455604317495812,
'bias_phipi': -0.01591987721825916,
'noise': -0.05001594304783659}}
loss: 13.544038
step: 206
parameters:
{ 'fluxonium': { 'ec': 1.5466066845411692,
'ej': 2.848564321271342,
'el': 0.3600303998130987},
'~': { 'bandwidth': 0.010393804736807434,
'bias_phi0': -0.6575838240701154,
'bias_phipi': -0.015227590981241568,
'noise': 2.6924590357633575}}
gradient:
{ 'fluxonium': { 'ec': 0.009539415544808527,
'ej': -0.008134551912018145,
'el': 9.301600657485309e-07},
'~': { 'bandwidth': 0.010929797157075661,
'bias_phi0': 0.00672255583285053,
'bias_phipi': -0.01562737292785754,
'noise': -0.04793320460129608}}
loss: 13.542591
step: 207
parameters:
{ 'fluxonium': { 'ec': 1.5469481394447173,
'ej': 2.848478506536337,
'el': 0.3600186793562162},
'~': { 'bandwidth': 0.010106820026659302,
'bias_phi0': -0.6575751264142218,
'bias_phipi': -0.015208873998256454,
'noise': 2.8106449970392884}}
gradient:
{ 'fluxonium': { 'ec': 0.007431663855018922,
'ej': -0.007509893361455439,
'el': -0.010534550090623623},
'~': { 'bandwidth': -0.02746922522144882,
'bias_phi0': -0.0012225910300336373,
'bias_phipi': -0.019267152479580663,
'noise': -0.040384774182743416}}
loss: 13.537388
step: 208
parameters:
{ 'fluxonium': { 'ec': 1.5479521328147645,
'ej': 2.84824123218336,
'el': 0.3599808611485159},
'~': { 'bandwidth': 0.009372281355458926,
'bias_phi0': -0.657544591347864,
'bias_phipi': -0.015155871762146302,
'noise': 3.1683716220683156}}
gradient:
{ 'fluxonium': { 'ec': 0.001621927467051254,
'ej': -0.007119887772578659,
'el': -0.049882147011919786},
'~': { 'bandwidth': -0.17620984774335666,
'bias_phi0': -0.02879646257953583,
'bias_phipi': -0.03386764686483845,
'noise': -0.023156944742539612}}
loss: 13.526317
step: 209
parameters:
{ 'fluxonium': { 'ec': 1.5479502818656332,
'ej': 2.848243125496874,
'el': 0.3599817020424592},
'~': { 'bandwidth': 0.009474804138053721,
'bias_phi0': -0.6575452207994286,
'bias_phipi': -0.015157839916340806,
'noise': 3.168386866530655}}
gradient:
{ 'fluxonium': { 'ec': 0.005865005700142589,
'ej': -0.0031869737885585614,
'el': 0.003718799236049508},
'~': { 'bandwidth': 0.000315522826274262,
'bias_phi0': -0.004994055158107802,
'bias_phipi': -0.004934975255675322,
'noise': -0.0228887875434651}}
loss: 13.526307
step: 210
parameters:
{ 'fluxonium': { 'ec': 1.547952441589072,
'ej': 2.8482426731107995,
'el': 0.35998160616487745},
'~': { 'bandwidth': 0.009473502245913439,
'bias_phi0': -0.6575451348024319,
'bias_phipi': -0.015157732614544088,
'noise': 3.1692083572565752}}
gradient:
{ 'fluxonium': { 'ec': 0.0058567324979841295,
'ej': -0.003182498950632745,
'el': 0.0037133834990535908},
'~': { 'bandwidth': 0.00031445340994559745,
'bias_phi0': -0.004987118454871098,
'bias_phipi': -0.004928031524146004,
'noise': -0.02285655490479868}}
loss: 13.526289
step: 211
parameters:
{ 'fluxonium': { 'ec': 1.5479610804828265,
'ej': 2.8482408635665024,
'el': 0.3599812226545505},
'~': { 'bandwidth': 0.009468294677352307,
'bias_phi0': -0.6575447908144452,
'bias_phipi': -0.015157303407357211,
'noise': 3.172494320160255}}
gradient:
{ 'fluxonium': { 'ec': 0.005823501889588911,
'ej': -0.003164858174335039,
'el': 0.0036886217922499354},
'~': { 'bandwidth': 0.0002976486934577855,
'bias_phi0': -0.004961258379013067,
'bias_phipi': -0.0049016339297525136,
'noise': -0.02272794646993517}}
loss: 13.526214
step: 212
parameters:
{ 'fluxonium': { 'ec': 1.547995636057845,
'ej': 2.848233625389314,
'el': 0.3599796886132426},
'~': { 'bandwidth': 0.009447464403107779,
'bias_phi0': -0.6575434148624983,
'bias_phipi': -0.015155586578609704,
'noise': 3.185638171774975}}
gradient:
{ 'fluxonium': { 'ec': 0.005688368917870168,
'ej': -0.0030984311531972453,
'el': 0.003540005278122871},
'~': { 'bandwidth': 3.019493460812039e-05,
'bias_phi0': -0.004887982588474671,
'bias_phipi': -0.004818049187689688,
'noise': -0.022218626113442788}}
loss: 13.525918
step: 213
parameters:
{ 'fluxonium': { 'ec': 1.5481338583579192,
'ej': 2.848204672680561,
'el': 0.359973552448011},
'~': { 'bandwidth': 0.009364143306129674,
'bias_phi0': -0.6575379110547112,
'bias_phipi': -0.015148719263619674,
'noise': 3.2382135782338555}}
gradient:
{ 'fluxonium': { 'ec': 0.005112103377369337,
'ej': -0.00289893409599018,
'el': 0.0021520697445169823},
'~': { 'bandwidth': -0.004231616427904089,
'bias_phi0': -0.005076700829955705,
'bias_phipi': -0.004834469595787816,
'noise': -0.020260636844281955}}
loss: 13.524803
step: 214
parameters:
{ 'fluxonium': { 'ec': 1.5485244186234501,
'ej': 2.848123935794034,
'el': 0.3599560128087114},
'~': { 'bandwidth': 0.009138230550834707,
'bias_phi0': -0.657522052470151,
'bias_phipi': -0.015129533352473933,
'noise': 3.3883146103385746}}
gradient:
{ 'fluxonium': { 'ec': 0.0035191152540661186,
'ej': -0.0025184193828312607,
'el': -0.003166872051266867},
'~': { 'bandwidth': -0.02256457914523452,
'bias_phi0': -0.0065738548914473505,
'bias_phipi': -0.005493273430348555,
'noise': -0.015276213796200696}}
loss: 13.522151
step: 215
parameters:
{ 'fluxonium': { 'ec': 1.5494167846098372,
'ej': 2.847944605589818,
'el': 0.3599149810481344},
'~': { 'bandwidth': 0.008666751413381477,
'bias_phi0': -0.6574843634398737,
'bias_phipi': -0.01508676257901532,
'noise': 3.7398881088001286}}
gradient:
{ 'fluxonium': { 'ec': -1.378693092934924e-05,
'ej': -0.0025692424786133983,
'el': -0.02219140382645718},
'~': { 'bandwidth': -0.09840420609232575,
'bias_phi0': -0.014545211301242755,
'bias_phipi': -0.008576264712286896,
'noise': -0.00639766217034991}}
loss: 13.518469
step: 216
parameters:
{ 'fluxonium': { 'ec': 1.5494164434204654,
'ej': 2.8479448653706823,
'el': 0.35991468897742046},
'~': { 'bandwidth': 0.008715508812356516,
'bias_phi0': -0.6574838754634205,
'bias_phipi': -0.01508754896247016,
'noise': 3.7398913797115196}}
gradient:
{ 'fluxonium': { 'ec': 0.0014690168082225341,
'ej': -0.0019240531087014734,
'el': -0.003084699175293082},
'~': { 'bandwidth': -0.00022852916122797793,
'bias_phi0': -0.0033606628913149805,
'bias_phipi': 0.010770690500315538,
'noise': -0.0062929507453837775}}
loss: 13.518467
[5]:
loss_kl_div.apply(res.x, *(data + (True,)))
[5]:
Array(13.51846704, dtype=float64)
